1.8kW-Petrol chainsaw with carving equipment

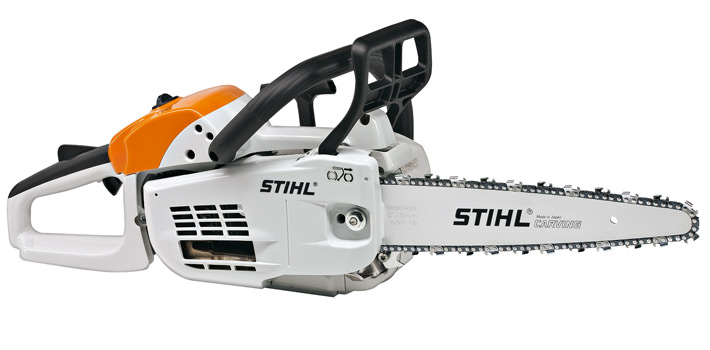

MS 201 Carving STIHL CHAINSAW 10 & 12 inch { fan cover side }
MS 201 is equipped with a specially designed anti-vibration system and a carving cutting equipment consisting of rail and STIHL STIHL carving carving chain RMS. The particularly high quality carving bar offers a very narrow track radius . The convenience chain RMS impresses with excellent cutting performance. Due to the shortened tooth roof is not a pressing need for more piercing operation. It achieves a significantly better rate than conventional lancing 1/4 "saw chain
MS 201 Carving STIHL CHAINSAW 10 & 12 inch { fan cover side }
|
Specifications :
Displacement cm ³ Power kW / hp Weight kg (1) Power to weight ratio kg / kW Saw chain Pitch STIHL Oilomatic chain saw type Sound pressure level dB(A) (2) Sound power level in dB(A)(2) Vibration value left/right/s² (3) |
35.2 1.8 / 2.4 3.9 2.2 1/4 " Picco Micro Special (RMS) 98.0 110.0 4.8 / 4.8 |
(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²
|
|
|
|
MS 201 Carving
|
|
1.8kW-Petrol chainsaw with carving equipment
STIHL 2-MIX reduced-emission engine technology :
CLICK HERE TO ENLARGE
2-stroke engine with stratified charge. A fuel-free layer of air is created between
the burned charge in the combustion chamber and the fresh charge in the crankcase,
reducing the amount of fuel lost during the charge cycle. This results in more power
with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines
and significantly reduced exhaust emissions.
More information
the burned charge in the combustion chamber and the fresh charge in the crankcase,
reducing the amount of fuel lost during the charge cycle. This results in more power
with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines
and significantly reduced exhaust emissions.
More information
Captive nuts :
CLICK HERE TO ENLARGE
Captive nuts
When changing the cutting attachment to the nuts on the sprocket
no longer be lost. A big advantage for all users.
(Similar to picture)
When changing the cutting attachment to the nuts on the sprocket
no longer be lost. A big advantage for all users.
(Similar to picture)
STIHL ElastoStart :
CLICK HERE TO ENLARGE
STIHL ElastoStart reduces the shock caused by the compression of the engine
during starting. The compression shock is taken away from the user's joints and
muscles through a spring or rubber element in the starter handle.
(Similar to picture)
More information
during starting. The compression shock is taken away from the user's joints and
muscles through a spring or rubber element in the starter handle.
(Similar to picture)
More information
Tool-less tank lid:
CLICK HERE TO ENLARGE
Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)
More information
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)
More information
Lateral chain tensioning :
CLICK HERE TO ENLARGE
Side chain tensioner
The tensioning screw can be found on the side of chain saw through the sprocket cover.
This removes the need for contact with the sharp saw chain.
(Similar to picture)
The tensioning screw can be found on the side of chain saw through the sprocket cover.
This removes the need for contact with the sharp saw chain.
(Similar to picture)
STIHL 4-channel technology :
CLICK HERE TO ENLARGE
Advanced combustion technology
Four overflow channels swirl the fuel-air mix before ignition, allowing for optimum
combustion and highly efficient performance. The result is lower fuel consumption
and high torque across a broad rpm range.
(Similar to picture)
Four overflow channels swirl the fuel-air mix before ignition, allowing for optimum
combustion and highly efficient performance. The result is lower fuel consumption
and high torque across a broad rpm range.
(Similar to picture)
Variable-displacement oil pump :
CLICK HERE TO ENLARGE
The exact chain oil output can be adjusted manually for varying conditions,
allowing for a reduction of up to 50%.
(Similar to picture)
allowing for a reduction of up to 50%.
(Similar to picture)
Anti vibration system:
CLICK HERE TO ENLARGE
In the longer term, strong vibrations at the handle points
of motor equipment can lead to poor circulation in hands and
arms. STIHL has therefore developed a high quality anti vibration system.Motor
devices with AV system, the vibrations generated by the engine and the
working environment, be substantially reduced at the handle points.
(Similar to picture)
of motor equipment can lead to poor circulation in hands and
arms. STIHL has therefore developed a high quality anti vibration system.Motor
devices with AV system, the vibrations generated by the engine and the
working environment, be substantially reduced at the handle points.
(Similar to picture)
STIHL Ematic system:
CLICK HERE TO ENLARGE
Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods
of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods
of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%
Compensator:
CLICK HERE TO ENLARGE
The STIHL compensator, a control system in the carburettor, ensures
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)
Single-lever operation:
CLICK HERE TO ENLARGE
The functions of the machine, such as cold and warm startup,
operation and stop, are controlled by a single lever. This makes
the operation especially comfortable and safe, because the right hand
on the handle can remain. (Similar to picture)
operation and stop, are controlled by a single lever. This makes
the operation especially comfortable and safe, because the right hand
on the handle can remain. (Similar to picture)
Carburettor heating:
CLICK HERE TO ENLARGE
Carburettor heating
By changing the chain saw from summer to winter operation, the intake air is pre-heated
over the engine fins. This ensures that the carburettor does not ice up and you can
continue working in freezing temperatures.
By changing the chain saw from summer to winter operation, the intake air is pre-heated
over the engine fins. This ensures that the carburettor does not ice up and you can
continue working in freezing temperatures.
