STIHL MS400 C-M Chainsaw - FLEMING'S STIHL Centre Naas Co. Kildare

STIHL
MS 400 C-M
CHAINSAW

Stihl
MS400 C-M
Chainsaw

PROFESSIONAL 4.0 KW CHAINSAW WITH MAGNESIUM PISTON TECHNOLOGY

MS 400 C-M

The new MS 400 C-M is the world’s first chainsaw with a magnesium piston. The MS 400 C-M chainsaw has been designed with professionals in mind, offering STIHL’s highest performance in the 60cc class. More displacement, more power, more torque, only a small weight increase compared to the MS 362 C-M and an outstanding power to weight ratio. The new 2-MIX engine provides 4kW of power, compared to 3.5kW in the MS 362 C-M, as well as more torque – 4.1 Nm vs 3.5 Nm. These increases come from larger displacement of 66.8cc, which is a 14% increase compared to the MS 362 C-M. The magnesium piston is also 14% lighter than the aluminum piston in the MS 362 C-M, helping ensure rapid acceleration. Thanks to these intelligent design features, the MS 400 C-M has an impressive power-to-weight ratio of 1.45 kilograms per kilowatt, making it ideal to use when working in the forest, especially over prolonged periods. The powerhead on it’s own weighs 5.8 kg. In addition to the new 66.8 cc engine, the MS 400 C-M features STIHL’s latest M-Tronic 3.0 technology which has STIHL’s simple re-calibration procedure and an improved HD2 filter, which all help deliver optimum performance from the saw at all times.

Specifications :

Displacement cm ³ 66.8
Power kW / hp 4.0/ 5.4
Weight kg 5.8(1)
Power to weight ratio kg / kW 1.45
Saw chain Pitch 3/8"P
Performance 5.4 bhp
Sound pressure level dB(A) 107.0(2)
Sound power level in dB(A) 118.0 (2)
Vibration value left/right/s² 3,5/ 3,5(3)

(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²

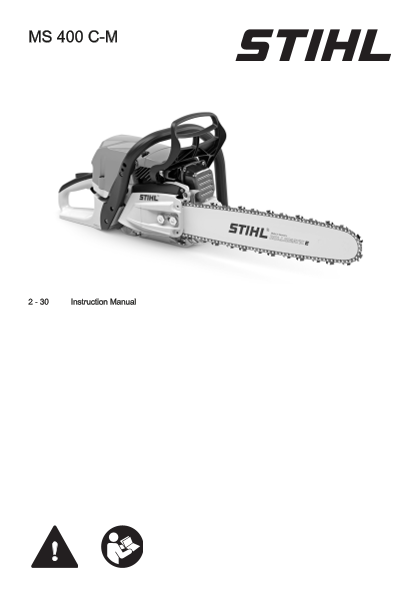

Owners / Instruction Manuals
MS400 C-M Owners Manuel Click Here

Product Videos

STIHL MS 400 C-M
Standard equipment:

PROFESSIONAL 4.0 KW CHAINSAW WITH MAGNESIUM
PISTON TECHNOLOGY

STIHL 2-MIX REDUCED-EMISSION ENGINE TECHNOLOGY

CLICK HERE TO ENLARGE

2-stroke engine with stratified charge. A fuel-free layer of air is created between
the burned charge in the combustion chamber and the fresh charge in the crankcase,
reducing the amount of fuel lost during the charge cycle. This results in more power
with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines
and significantly reduced exhaust emissions.

Ematic™ Lubrication System

CLICK HERE TO ENLARGE

The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.

HD2 FILTER

CLICK HERE TO ENLARGE

The newly developed HD2 filter is made from polyethylene filter material with up to 70% finer pores than fleece and polyamide filters to trap even very fine dust. In addition, it is oil and water-repellent and thus very easy to clean. The PET-covered round filter cartridge with quick-release lock enables the filter to be assembled and disassembled in next to no time, without using tools
(Similar to picture)

STIHL ELASTOSTART

CLICK HERE TO ENLARGE

STIHL ElastoStart reduces the shock caused by the compression of the engine
during starting. The compression shock is taken away from the user's joints and
muscles through a spring or rubber element in the starter handle.
(Similar to picture)

Compensator

CLICK HERE TO ENLARGE

The STIHL compensator, a control system in the carburettor, ensures
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)

DECOMPRESSION VALVE

CLICK HERE TO ENLARGE

Decompression valve
The decompression valve is part of the easy starting system. The valve should be pressed before starting to reduce the compression pressure when starting, as well as the effort needed to pull the starter rope. The decompression valve is semi-automatic; it must be pressed manually before starting, but then closes automatically.

VARIABLE-DISPLACEMENT OIL PUMP

CLICK HERE TO ENLARGE

Variable-displacement oil pump
The exact chain oil output can be adjusted manually for varying conditions,
allowing for a reduction of up to 50%.

TOOL-LESS TANK LID

CLICK HERE TO ENLARGE

Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)

MAGNESIUM ALLOY PISTON

CLICK HERE TO ENLARGE

The magnesium alloy piston is lighter in weight than equivalent size aluminum alloy pistons.

Additional features :

Side-Access Chain Tensioner

CLICK HERE TO ENLARGE

The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.

CAPTIVE NUTS

CLICK HERE TO ENLARGE

Captive nuts
When changing the cutting attachment to the nuts on the sprocket
no longer be lost. A big advantage for all users.
(Similar to picture)

Anti-Vibration System

CLICK HERE TO ENLARGE

STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
