14" LIGHT GUIDE BAR FOR IMPROVED CUTTING PERFORMANCE

MSA 220 TC-O

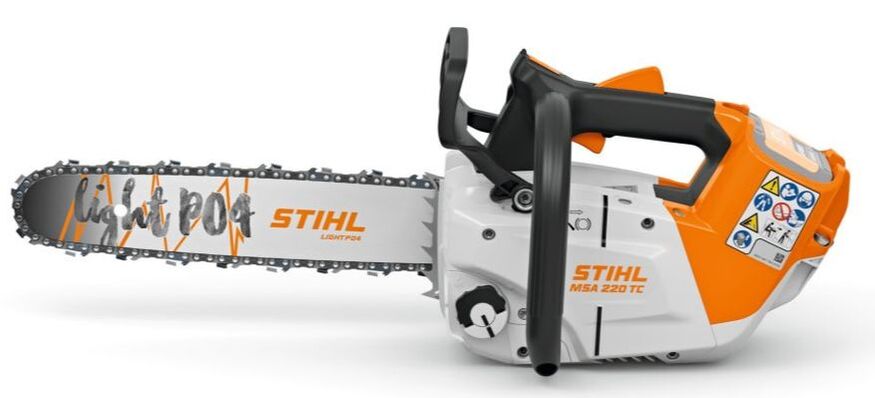

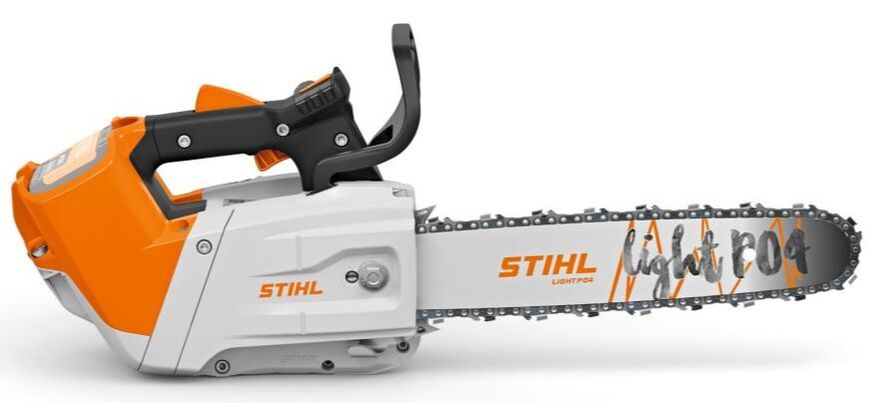

The MSA 220 TC-O is STHL’s most powerful cordless top-handle saw to date. This professional arborist saw is ideal for removing pieces of trunk, crown correction, or removing dead wood.
The TC-O model features an oil sensor on an LED display which gives the user a warning when the chain oil level is low. It also has an electronic trigger system with an unlock button for simple saw activation, which leads to easy operation.
LED display on the top handle also shows information on the operating status of the chainsaw as well as the chain break position.
With an easy-to-clean air filter for long service life and optimum engine cooling, excellent cutting performance, side-mounted chain tensioning, tool-free oil tank cap, captive nut on the sprocket cover.

Powerful professional cordless top-handle chainsaw for noise-sensitive areas
Individual tool without battery and without charger
For trained arborists
Intuitive operation thanks to electronic control system
LED display on the top handle for information on the operating status of the chainsaw as well as the
Monitor the oil pressure thanks to the oil sensor
IPX4 rated for working in all weather

Specifications :

Bar length 30-35 cm
Bar length 12-14 in
Rated voltage 36 V
Oil tank volume 220 cm³
Recommended battery AP 300 S
Weight 3.3 kg (1)
Sound pressure level 94 dB(A) (2)
Sound power level 104 dB(A) (3)
Vibration levels left/right 3/3.4 m/s2 (4)
Chain gauge 3/8"P
Battery system AP System
Recommended battery AP 300 S
Working time with AP 300 S battery up to 29 min (5)
Working time with AP 500 S battery up to 34 min (6)
Protection type EN 60 529 IP 20


1)Without battery, with guide bar and saw chain
2)K-factor according to DIR 2006/42/EC = 2.5 (dB (A)
3)K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4)K-factor according to DIR 2006/42/EC = 2m / s ²
5)Battery working times are approximate and may vary depending on application
6)Working times can vary depending on use and application

Owners / Instruction Manuals

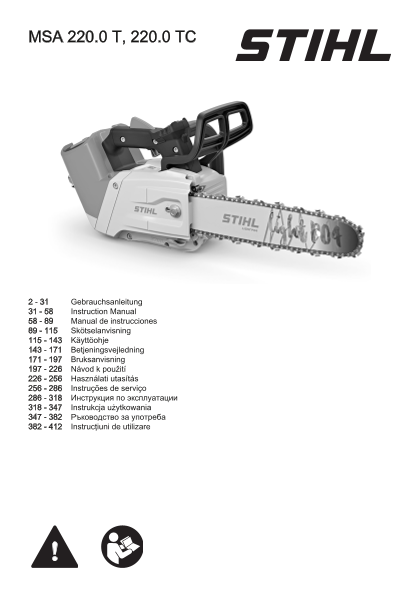

MSA220 TC-O Owners Manuel Click Here

Product Videos

STIHL MSA220 tC-O
Standard equipment:

HIGH-PERFORMANCE CORDLESS CHAINSAW

EC ENGINE

CLICK HERE TO ENLARGE

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.

Fleece Air Filter

CLICK HERE TO ENLARGE

Features an easy-to-clean fleece air filter that allows cool, clean air to be circulated around the motor and electronics, designed to keep them free of debris.

FOLD OUT HOOK

CLICK HERE TO ENLARGE

The fold-out hook serves as a carrying rope attachment .
(Similar to picture)


Brushless Motor

CLICK HERE TO ENLARGE

The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.

QUICKSTOP SUPER CHAIN BRAKE

CLICK HERE TO ENLARGE

STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.

Low Oil Sensor

CLICK HERE TO ENLARGE

The low oil sensor allows the operator to see when the oil is low so they can keep the bar and chain properly lubricated.

STIHL EMATIC SYSTEM

CLICK HERE TO ENLARGE

Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%


Side-Access Chain Tensioner

CLICK HERE TO ENLARGE

The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
