STIHL
HT135
POLE PRUNER

Stihl
HT135
POLE PRUNER

POWERFUL, PROFESSIONAL TELESCOPIC POLE PRUNER WITH LIGHTWEIGHT MAGNESIUM GEARBOX

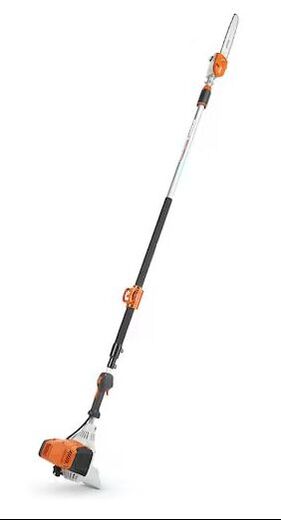

HT135

The STIHL HT 135 is a powerful telescopic pole pruner with a lightweight magnesium gearbox, ideal for professional tree care and maintenance. Efficiently prune trees or remove dead wood, branches and storm damage. Low emissions and a manual fuel pump work in conjunction with the automatic decompression to make sure the engine starts quickly and easily. Powerful, high torque 4-MIX engine. The light and robust magnesium gearbox in the cutting head makes working over a long period energy efficient. A branch hook is attached to the magnesium housing and lateral chip ejection on the gearbox prevents clogging. Sprocket cover with dipstick can be used for positioning the pole pruner during work. A 1:1 oil tank to petrol tank ratio means chain oil does not need to be added in-between tanks of fuel. Handling the HT 135 is both safe and comfortable as well. The engine is controlled via the multi-functional handle. STIHL anti-vibration system also helps to relieve muscles and joints. With a rigid, adjustable telescopic shaft that can be quickly adjusted for different working heights or transportation, the pole pruner has a total length of 270 cm – 390 cm and can cut branches up to a height of 5 m. For maximum cutting performance, you can use the STIHL HT 135 petrol pole pruner with a ¼”P or a 3/8”P cutting attachment. An ergonomic, padded shoulder strap and mounting clamp for RTS harness are included within the scope of delivery.Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.

Length-adjustable telescopic shaft for working at height
Most powerful STIHL petrol pole pruner
Robust magnesium gearbox with cast-on branch hook
STIHL 4-MIX® engine with automatic decompression
For professional tree care in fruit growing and municipal operations

Specifications :

Capacity 36.3 cm³
Performance 1.4 kW
Weight 7.9 kg (1)
CO² 845 g/kWh
Sound pressure level 92 dB(A) (2)
Sound power level 109 dB(A) (2)
Vibration level left/right 4.3/4.8 m/s2 (3)
EPA Certified fuel consumption 0.202 glh
Anti vibration system Standard AV-System
Standard Saw chain 1/4" P PM3
Total length (max) 390 cm (4)
Chain pitch 1/4"P
Oil tank volume 220 cm³


1)Without fuel, without bar and chain
2)K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3)K-factor according to DIR 2006/42/EC = 2m / s ²
4)With cutting attachment

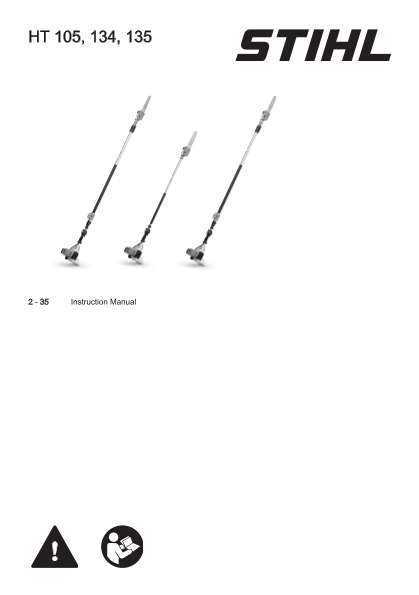

Owners / Instruction Manuals
HT135 Owners Manuel Click Here

Product Videos

STIHL HT 135

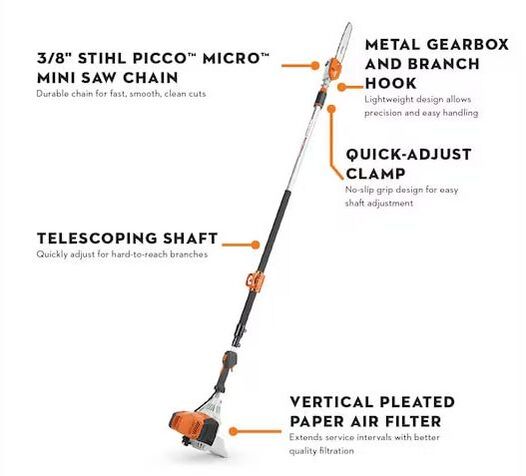

Standard equipment:

POWERFUL,PROFESSIONAL TELESCOPIC POLE PRUNER WITH LIGHTWEIGHT
MAGNESIUM GEARBOX

Telescoping Pole

CLICK HERE TO ENLARGE

With an adjustable shaft, telescoping pole pruners can cut branches up to 16 feet above ground.

ANTI VIBRATION SYSTEM

CLICK HERE TO ENLARGE

STIHL has a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.

Multi-Function Control Handle

CLICK HERE TO ENLARGE

Having easy access to all of the controls on one comfortable handle helps makes it easier to complete tasks so the operator’s hand never has to leave the handle.

Tough metal gearbox with durable metal branch hook

CLICK HERE TO ENLARGE

The new lightweight gearbox design provides high-speed precision while pruning, allowing for easy handling when reaching for high branches

¼” STIHL PICCO™ saw chain

CLICK HERE TO ENLARGE

With its narrow design, the ¼” STIHL PICCO™ saw chain requires less pressure and force to cut compared to the previous models producing fast, clean results.

New quick-adjustment clamp nut with no-slip grip design

CLICK HERE TO ENLARGE

The new quick-adjustment clamp nut with no-slip grip design enhances user comfort and allows for easy adjustment of the shaft.

EASY HANDLING

CLICK HERE TO ENLARGE

A clamp on the telescopoic shaft means the pole pruner can be attached easily and released quickly. The clip can be easily moved by the user. Stihl shoulder strap is included as strandard.

TOOL-LESS TANK LID

CLICK HERE TO ENLARGE

Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)

STIHL EMATIC SYSTEM

CLICK HERE TO ENLARGE

Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%
