GROUNDBREAKING 2.8KW PETROL CHAIN SAW

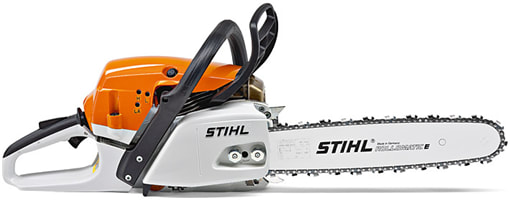

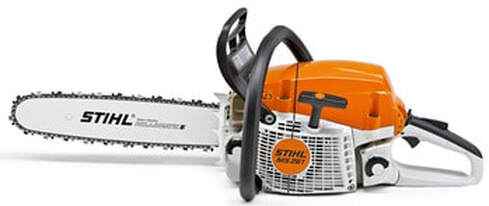

MS 261 C-M

Highly versatile mid-range petrol chain saw. The new updated version of the best-selling MS 260 reduces fuel consumption by up to 20% and exhaust emissions by up to 50%. Additional features include the new HD2 long life air filter system, anti-vibration technology and patented captive nuts on the chain sprocket cover. This mid-range professional chain saw is suitable for a wide variety of applications, from cutting firewood, to thinning work and felling medium sized stands.


Specifications :

Displacement cm ³ 50.2
Power kW / hp 2.8/ 3.8
Weight kg 5.2(1)
Power to weight ratio kg / kW 1.9
Saw chain Pitch 0.325"P
STIHL Oilomatic chain saw type
Rapid super (RS)
Sound pressure level dB(A) 102.0(2)
Sound power level in dB(A) 113.0 (2)
Vibration value left/right/s² 3,5/ 3,5(3)

(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²

Owners / Instruction Manuals
MS261 C-M Owners Manuel Click Here

Product Videos

STIHL MS 261 C-M
Standard equipment:

GROUNDBREAKING 2.8KW PETROL CHAIN SAW

STIHL 2-MIX REDUCED-EMISSION ENGINE TECHNOLOGY :

CLICK HERE TO ENLARGE

2-stroke engine with stratified charge. A fuel-free layer of air is created between
the burned charge in the combustion chamber and the fresh charge in the crankcase,
reducing the amount of fuel lost during the charge cycle. This results in more power
with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines
and significantly reduced exhaust emissions.

CAPTIVE NUTS

CLICK HERE TO ENLARGE

Captive nuts
When changing the cutting attachment to the nuts on the sprocket
no longer be lost. A big advantage for all users.
(Similar to picture)

CARBURETTOR HEATING:

CLICK HERE TO ENLARGE

Carburettor heating
By changing the chain saw from summer to winter operation, the intake air is pre-heated over the engine fins. This ensures that the carburettor does not ice up and you can continue working in freezing temperatures.

STIHL ELASTOSTART

CLICK HERE TO ENLARGE

STIHL ElastoStart reduces the shock caused by the compression of the engine
during starting. The compression shock is taken away from the user's joints and
muscles through a spring or rubber element in the starter handle.
(Similar to picture)

Compensator

CLICK HERE TO ENLARGE

The STIHL compensator, a control system in the carburettor, ensures
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)

HD2 FILTER :

CLICK HERE TO ENLARGE

The newly developed HD2 filter is made from polyethylene filter material with up to 70% finer pores than fleece and polyamide filters to trap even very fine dust. In addition, it is oil and water-repellent and thus very easy to clean. The PET-covered round filter cartridge with quick-release lock enables the filter to be assembled and disassembled in next to no time, without using tools
(Similar to picture)

VARIABLE-DISPLACEMENT OIL PUMP

CLICK HERE TO ENLARGE

Variable-displacement oil pump
The exact chain oil output can be adjusted manually for varying conditions,
allowing for a reduction of up to 50%.

TOOL-LESS TANK LID

CLICK HERE TO ENLARGE

Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)

STIHL EMATIC SYSTEM

CLICK HERE TO ENLARGE

Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%

Lateral chain tensioning

CLICK HERE TO ENLARGE

The tensioning screw can be found on the side of chain saw through the
sprocket cover. This removes the need for contact with the sharp saw chain.
(Similar to picture)

SINGLE-LEVER OPERATION

CLICK HERE TO ENLARGE

The functions of the machine, such as cold and warm startup,
operation and stop, are controlled by a single lever. This makes
the operation especially comfortable and safe, because the right hand
on the handle can remain. (Similar to picture)
