A lightweight chain saw for professional arborists . For in-tree professional use only.

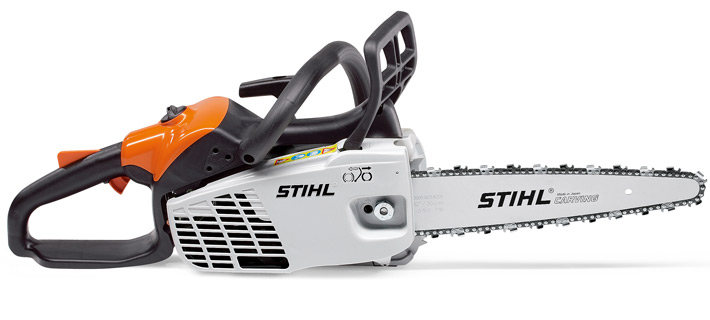

MS 192 CE Carving STIHL CHAINSAW 10 & 12 inch { fan cover side }
Comfortable, lightweight 3.3 kg petrol chainsaw STIHL. Very high comfort due to start ErgoStart (E). Very low vibration and with specially designed carving cutting equipment extremely reaction forces. Very small bar tip for precise cutting of very small radii and filigree contours. Perfect for demanding carvers, arborists and fruit growers.
MS 192 CE Carving STIHL CHAINSAW 10 & 12 inch
|
Specifications :
Displacement cm ³ Power kW / hp Weight kg (1) Power to weight ratio kg / kW Saw chain Pitch STIHL Oilomatic chain saw type Sound pressure level dB(A) (2) Sound power level in dB(A)(2) Vibration value left/right/s² (3) |
30.1 1.3 / 1.8 3.3 2.5 1/4" Picco Micro Special (RMS) 99.0 110.0 4,6 / 4,6 |
(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²
|
|
|
|
MS 192 CE Carving
|
|
A lightweight chain saw for professional arborists . For in-tree professional use only.
STIHL ErgoStart (E) :
CLICK HERE TO ENLARGE
STIHL ErgoStart (E)
A genuine advance in easy starting. STIHL ErgoStart (E) cuts the effort
required to start the tool by half, while the starter cord can be pulled at
just one third of the normal force. All it takes is 2 fingers and a gentle
pull action. (Similar to picture)
More information
A genuine advance in easy starting. STIHL ErgoStart (E) cuts the effort
required to start the tool by half, while the starter cord can be pulled at
just one third of the normal force. All it takes is 2 fingers and a gentle
pull action. (Similar to picture)
More information
Tool-less tank lid:
CLICK HERE TO ENLARGE
Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)
More information
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)
More information
Manual fuel pump (Purger) :
CLICK HERE TO ENLARGE
A small fuel pump delivers fuel to the carburettor at the touch of a button.
This reduces the number of starting strokes required following extended
breaks in operations.
(Similar to picture)
More information
This reduces the number of starting strokes required following extended
breaks in operations.
(Similar to picture)
More information
Lateral chain tensioning :
CLICK HERE TO ENLARGE
Side chain tensioner
The tensioning screw can be found on the side of chain saw through the sprocket cover.
This removes the need for contact with the sharp saw chain.
(Similar to picture)
The tensioning screw can be found on the side of chain saw through the sprocket cover.
This removes the need for contact with the sharp saw chain.
(Similar to picture)
Anti vibration system:
CLICK HERE TO ENLARGE
In the longer term, strong vibrations at the handle points
of motor equipment can lead to poor circulation in hands and
arms. STIHL has therefore developed a high quality anti vibration system.Motor
devices with AV system, the vibrations generated by the engine and the
working environment, be substantially reduced at the handle points.
(Similar to picture)
of motor equipment can lead to poor circulation in hands and
arms. STIHL has therefore developed a high quality anti vibration system.Motor
devices with AV system, the vibrations generated by the engine and the
working environment, be substantially reduced at the handle points.
(Similar to picture)
STIHL Ematic system:
CLICK HERE TO ENLARGE
Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods
of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods
of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%
Compensator:
CLICK HERE TO ENLARGE
The STIHL compensator, a control system in the carburettor, ensures
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)
Single-lever operation:
CLICK HERE TO ENLARGE
The functions of the machine, such as cold and warm startup,
operation and stop, are controlled by a single lever. This makes
the operation especially comfortable and safe, because the right hand
on the handle can remain. (Similar to picture)
operation and stop, are controlled by a single lever. This makes
the operation especially comfortable and safe, because the right hand
on the handle can remain. (Similar to picture)
