Powerful 1.4kW-Backpack brushcutter with 4-MIX engine and split shaft

                                                     FR 130 T

CLICK HERE TO ENLARGE

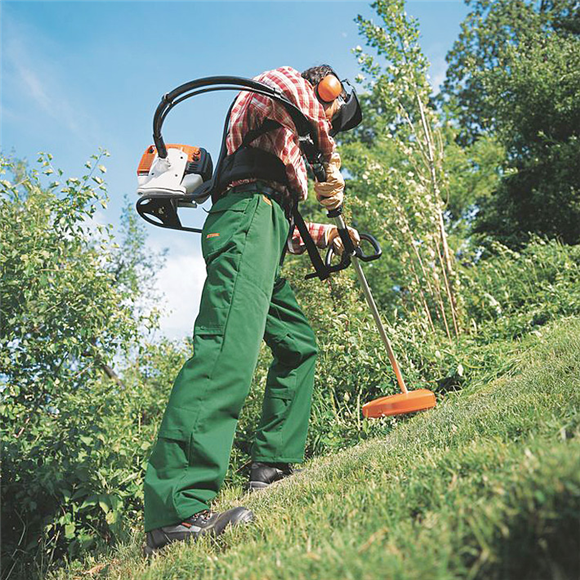

Powerful backpack brushcutter with 4-MIX engine. Ideal for mowing on steep embankments, overgrown slopes or in narrow ditches. The weight is carried on the user's back for maximum comfort via a support frame with an anti-vibration system and fully adjustable back plate. Thickly padded straps ensure extra comfort. With split shaft, able to take KombiTools from STIHL's innovative KombiSystem.

---

CLICK HERE TO ENLARGE

Specifications :

Displacement cm ³
Power  kW / hp
Weight kg  (2)
Cutting blade
Fuel capacity l
Overall length m (3)
Sound pressure level dB(A) (4)
Sound power level in dB(A)(4)
Vibration levels left/right with metal blade m/s²(1)
Vibration levels left/right with plastic tool m/s² (1)

36.3
1.4 / 1.9
10.3
AutoCut Head
0.71
1.8
94.0
102.0
2/2
3.1/2.1

(1) (K) factor according to Dir. 2006/42/EC = 2m/s²
(2) without cutting tool and deflector
(3) without tool
(4) Power factor according to DIR2006/42/EC=2.5(dB(A))

---

---

 FR 130 T
Standard equipment:

Powerful 1.4kW-Backpack brushcutter with 4-MIX engine and split shaft

STIHL 4-MIX-Motor :

CLICK HERE TO ENLARGE

You can always rely on STIHL to keep setting new benchmarks this time with 4-stroke
mixed lubrication technology. The STIHL 4-MIX engine, which runs on a fuel-oil mix just
 like a 2-stroke, offers the benefits without the compromises of 4-stroke power. STIHL
4-MIX engine technology provides fast acceleration, more power, added torque, lower
noise, reduced emissions and increased fuel efficiency to complete jobs quickly, quietly
and more easily.

---

Decompression system :

CLICK HERE TO ENLARGE

The decompression system allows some of the compression pressure in the cylinder to
escape, so less force on the starter rope is needed.

---

Anti-vibration system :

CLICK HERE TO ENLARGE

Intense vibration at the handles of power tools can lead to long-term effects on blood
vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration
system whereby the oscillations from the machine's engine are dampened which
significantly reduces vibrations at the handles.

---

CLICK HERE TO ENLARGE

The STIHL padded shoulder straps facilitate the work especially for long term use. They offer
great freedom of movement and provide security in the use of the device. An appropriate
model for each STIHL shoulder strap is standard (similar).

---

CLICK HERE TO ENLARGE

With the manual fuel pump delivers fuel to thumb pressure to the carburetor. As a result, the
number of starting strokes is reduced after a prolonged stoppage of the machine.
(Illustration similar)

More information

---

Loop handle (R) :

CLICK HERE TO ENLARGE

The loop handled grass trimmers and brushcutters are ideal for working in areas where
space is limited, e.g. thinning between bushes and shrubs

---

Multi-function handle :

CLICK HERE TO ENLARGE

Multifunction handle: All controls for motor control are integrated in this handle. The operation
is particularly simple and safe - the hand remains on the handle.
(Illustration similar)

---

---

Additional Accessories :

KM-AC :

CLICK HERE TO ENLARGE

KombiTool mowing head AutoCut 25-2 for the STIHL KombiSystem. Designed for mowing and
trimming around obstacles. Approved for all KombiEngines and FR 130 T.


Technical data

Tool                                    Mowing line AutoCut 25-2
Weight                                1.2 kg
Overall length                       94 cm

---

KM-MB :

CLICK HERE TO ENLARGE

Grass cutting blade MB 230-2, Used for mowing heavy grass and weeds. Not for trimming
around obstacles. Approved for all KombiEngines and FR 130 T backpack brushcutter.

Technical data

Tool                                    Metal grass cutting blade
Weight                                1,2 kg
Overall length                      94 cm

---

• KM-HL 0° :


CLICK HERE TO ENLARGE

The KombiTool fixed hedge trimmer attachment makes it easier to reach those hard-to-trim
hedges. Suitable for all loop handle KombiEngines (KM 56 RC-E, KM 90 R, KM 100 R, KM 130 R)
and FR 130

Technical data

                                                 Tool                                     Hedge trimmer 0° fixed
                                                 Weight                                 1,8 kg
                                                 Overall length                       116 cm

---

• KM-HT :


CLICK HERE TO ENLARGE

Makes quick work of pruning trees and shrubs. Side-access chain tensioner makes it easy to
adjust the chain. Oil tank cap with retainer helps keep you from losing the cap. Optional shaft
extension. Suitable for all loop handle KombiEngines (KM 56 RC-E, KM 90 R, KM 100 R,
KM 130 R) and FR 130 T.

Technical data

Tool                                    Pole pruner
Weight                                1.8 kg
Overall length                      126 cm

---

KM-FCB :

CLICK HERE TO ENLARGE

For edging along walkways and planting beds. Adjustable depth control wheel and built-in blade
"sight" helps with making the correct cut. Suitable for all loop handle KombiEngines (KM 56 RC-E,
KM 90 R, KM 100 R, KM 130 R) and FR 130 T.

Technical data

Tool                                    Edge trimmer with bent shaft
Weight                                2.3 kg
Overall length                      92 cm

---

KM-KW :

CLICK HERE TO ENLARGE

The STIHL PowerSweep attachment cleans up tough dirt along roads, driveways and paths, moves
pebbles and sand in turf, as well as water and light snow along flat surfaces. Includes guard.
Suitable for all loop handle KombiEngines (KM 56 RC-E, KM 90 R, KM 100 R, KM 130 R) and FR 130

Technical data

Tool                                    Power sweeper
Weight                                5.4 kg
Overall length                      103 cm

---

KM-HL 135° :

CLICK HERE TO ENLARGE

The head quickly and easily adjusts 270° (135° working range) in 13 locking positions without tools.
Recommended for all loop handle KombiEngines and FR 130

Technical data

Tool                                    Hedge trimmer 135° adjustable
                                                Weight                                2.6 kg
                                                Overall length                      160 cm

---

KM-FH 135° :

CLICK HERE TO ENLARGE

Unique scrub cutter for precision trimming. The grass "lies down" after it is cut. Ideal for tight
trimming conditions. The head quickly and easily adjusts 270° (135° working range) in 13 locking
positions without tools. Suitable for use with all KombiEngines.

Technical data

Tool                                    Scrub cutter 135° adjustable
Weight                                2.4 kg
Overall length                      133 cm

---

KM-BF :

CLICK HERE TO ENLARGE

Pick tines KombiTool for the STIHL KombiSystem. A lightweight cultivator for getting into tight
places. Ideal for rejuvenation of flower beds and plantings, and for mixing amendments into
the soil. Approved for all KombiEngines and FR 130 T.

Technical data

Tool                                    Pick tines Cultivator
Weight                                4.1 kg
Overall length                      100 cm

---

KM-KB :

CLICK HERE TO ENLARGE

The STIHL bristle brush attachment is ideal for sweeping paths, patios and driveways.
Includes guard.

Technical data

Tool                                    Bristle brush
Weight                                6.4 kg
Overall length                      125 cm

---

We present some Product Technology features in STIHL product technology .

NOTE: Deviations from this range and these data are possible depending on the country. Changes in technology, equipment, price and range of accessories are reserved
