STIHL MS500I Chainsaw - FLEMING'S STIHL Centre Naas Co. Kildare

STIHL
MS 500i
CHAINSAW

Stihl
MS500I
Chainsaw

POWERFUL 5.0 KW CHAINSAW WITH ELECTRONICALLY CONTROLLED FUEL INJECTION

MS 500I

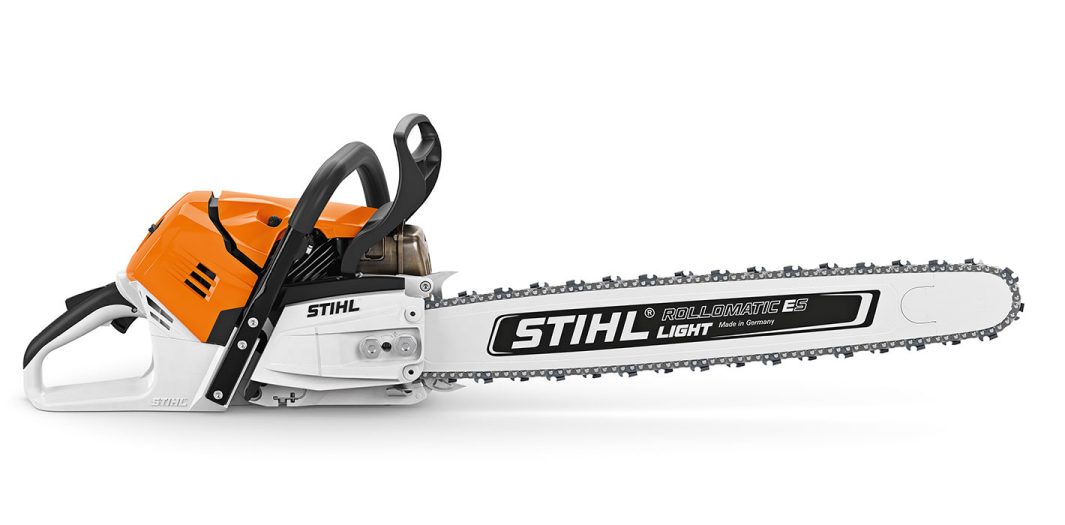

STIHL MS 500i: Pioneering chainsaw with fuel injection
The innovative MS 500i chainsaw from STIHL is the world’s first chainsaw with electronically controlled fuel injection. Its agile, performance-optimised engine accelerates very quickly. Thanks to its extremely successful lightweight design, this tool achieves an impressively low power-to-weight ratio of 1.24 kg/kW. This high-torque machine is a powerful solution for use in professionally harvesting large timber.
The MS 500i features a simple start-up sequence as well as very good starting behaviour under all usage conditions. Sensory fuel metering guarantees that the mixture is directly adapted to the oxygen content of the air. Like the MS 462, this saw can be very easily pivoted and – thanks to its new bumper spikes and sprocket cover – can be guided close to tree trunks.
Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.

The first high-power chainsaw worldwide with an electronic fuel injection system
Perfect for working on hardwood
Very easy to start and operate
Accelerates from 0 to 100 km/h in 0.25 seconds
Best power-to-weight ratio on the market

Specifications :

Displacement cm ³ 79.2
Power kW / hp 5.0/ 6.8
Weight kg 6.2(1)
Power to weight ratio kg / kW 1.2
Saw chain Pitch 3/8"P
Performance 6.7 bhp
Sound pressure level dB(A) 106.0(2)
Sound power level in dB(A) 119.0 (2)
Vibration value left/right/s² 4,2/ 4,0(3)


(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²

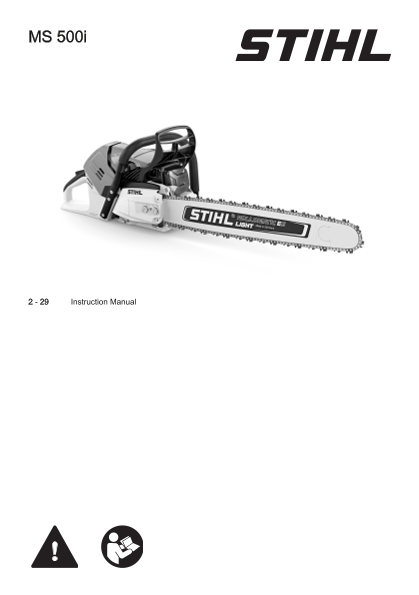

Owners / Instruction Manuals
MS500I Owners Manuel Click Here

Product Videos

STIHL MS 500I
Standard equipment:

POWERFUL 5.0 KW CHAINSAW WITH ELECTRONICALLY CONTROLLED FUEL INJECTION

Best power-to-weight ratio

CLICK HERE TO ENLARGE

Its revolutionary chainsaw engine technology, and resulting intelligent lightweight construction result in the best power-to-weight ratio on the market. The optimised design – with lightweight sprocket cover, more compact engine unit, flywheel with a low design height, and a reduced-weight crankshaft adapted to the low weight of the flywheel – makes work significantly more comfortable. The MS 500i is ideal for heavy timber felling, cutting into lengths, and pruning.

ANTI VIBRATION SYSTEM

CLICK HERE TO ENLARGE

In the longer term, strong vibrations at the handle points of motor equipment can lead to poor circulation in hands and arms. STIHL has therefore developed a high quality anti vibration system.Motor devices with AV system, the vibrations generated by the engine and the working environment, be substantially reduced at the handle points.
(Similar to picture)

PLUNGE GUIDE

CLICK HERE TO ENLARGE

FACILITATES CORRECT CUT DIRECTION. The plunge guide makes it easier to check the cutting direction during plunge cutting. It is mounted on the fan housing and runs parallel to the symmetry line of the guide bar.

STIHL ELASTOSTART

CLICK HERE TO ENLARGE

Due to compression pressure, jerky stresses occur when starting internal combustion engines. The damping element in the ElastoStart special starter grip alternately absorbs and releases force according to the compression pattern. The result is smooth, even starting.

SENSOR-BASED FUEL MEASUREMENT

CLICK HERE TO ENLARGE

FOR OPTIMISED RUNNING CHARACTERISTICS. During work, your chainsaw uses a pressure and temperature sensor on the engine to measure the fuel. The control unit processes the values measured by the sensor so that the system adapts to the operating conditions. The optimised measurement of the fuel also achieves the best possible running behaviour.

MANUAL DECOMPRESSION

CLICK HERE TO ENLARGE

EFFORTLESS START-UP. The decompression valve makes it easier to start your power tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.

OPTIMISED BUMPER SPIKES

CLICK HERE TO ENLARGE

FOR A FIRM GRIP ON THE TREE. The rounded arrangement of the bumper spike teeth matches the radial contours of trees. This means that your chainsaw will bite even better into the wood when cutting to length and felling.

TOOL-LESS TANK LID

CLICK HERE TO ENLARGE

Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)

STIHL Ematic with new oil pump system

CLICK HERE TO ENLARGE

The new oil pump system allows a higher volume of oil to be delivered. This is especially useful in dusty conditions or when using a long guide bar.

STIHL INJECTION

CLICK HERE TO ENLARGE

HIGH PERFORMANCE IN COMPACT DESIGN. The electronic fuel injection control unit continuously calculates the correct fuel supply and the ideal ignition time, and injection is performed directly into the crankcase via the injection valve. Additionally, sensors measure air pressure and internal and external temperature, and pass information on to the control unit. This can use the identified values to determine the optimum fuel quantity and ignition timing. This means that your power tool offers more power from a similar weight and installation space compared to engines without injection.

SIMPLIFIED START

CLICK HERE TO ENLARGE

NO NEED FOR A START POSITION. Thanks to electronic fuel injection, your chainsaw does not need a start position. In addition, the manual fuel pump is easily accessible, making the start-up process even easier.
