STIHL MSA220 T Chainsaw - FLEMING'S STIHL Centre Naas Co. Kildare

STIHL
MSA 220 T
BATTERY
CHAINSAW

Stihl
MSA 220 T
BATTERY
Chainsaw

14" LIGHT GUIDE BAR FOR IMPROVED CUTTING PERFORMANCE

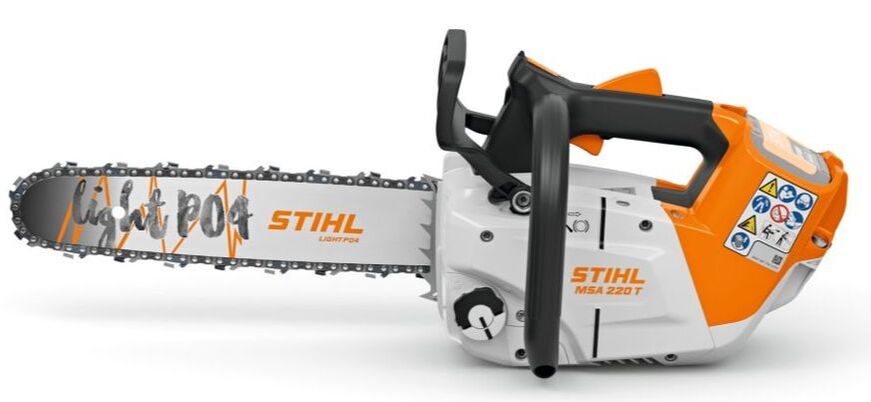

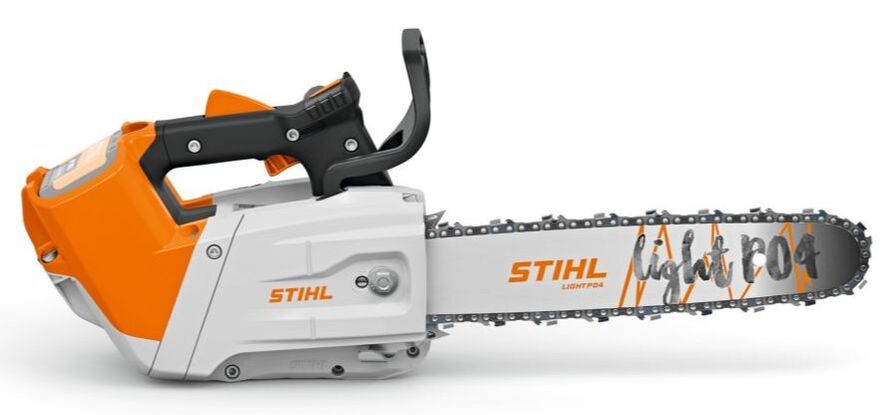

MSA 220 T

Robust, powerful cordless chainsaw for felling, pruning, cutting to length or building with wood. With STIHL 3/8" P - PS3 Pro saw chain for 20% more cutting performance than 3/8" P - PS, optimised energy efficiency and a 10% increase in the number of cuts per battery charge. Easy, convenient operation, ergonomic control lever with potentiometer function for infinitely variable speed control, STIHL Quick Chain Tensioning and transparent oil tank with tool-free cap. Sturdy metal bumper spikes for reliable and precise guidance of the chainsaw on wood.
Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.

Cordless chainsaw with a wide range of uses and excellent cutting performance
Tool only without battery and charger
For felling, delimbing, cutting to length, and building with timber
Low-noise EC motor for use in noise-sensitive environments
Outstanding cutting performance thanks to 3/8" PS3 Pro saw chain
Easy operation thanks to ergonomic design
IPX4 rated for working in all weather

Specifications :

Bar length 30-35 cm
Bar length 12-14 in
Rated voltage 36 V
Recommended battery AP 300 S
Weight 2.7 kg (1)
Sound pressure level 94 dB(A) (2)
Sound power level 104 dB(A) (3)
Vibration levels left/right 3/3.4 m/s2 (4)
Chain gauge 3/8"P
Battery system AP System
Recommended battery AP 300 S
Working time with AP 300 S battery up to 29 min (5)
Working time with AP 500 S battery up to34 min (6)
Protection type EN 60 529 IP 20


1)Without battery, with guide bar and saw chain
2)K-factor according to DIR 2006/42/EC = 2.5 (dB (A)
3)K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4)K-factor according to DIR 2006/42/EC = 2m / s ²
5)Battery working times are approximate and may vary depending on application
6)Working times can vary depending on use and application

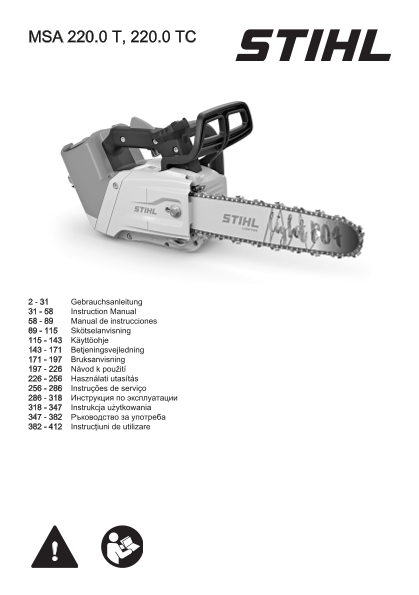

Owners / Instruction Manuals
MSA220 T Owners Manuel Click Here

Product Videos

STIHL MSA220 t
Standard equipment:

HIGH-PERFORMANCE CORDLESS CHAINSAW

EC ENGINE

CLICK HERE TO ENLARGE

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.

Fleece Air Filter

CLICK HERE TO ENLARGE

Features an easy-to-clean fleece air filter that allows cool, clean air to be circulated around the motor and electronics, designed to keep them free of debris.

FOLD OUT HOOK

CLICK HERE TO ENLARGE

The fold-out hook serves as a carrying rope attachment .
(Similar to picture)


Brushless Motor

CLICK HERE TO ENLARGE

The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.

QUICKSTOP SUPER CHAIN BRAKE

CLICK HERE TO ENLARGE

STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.

Low Oil Sensor

CLICK HERE TO ENLARGE

The low oil sensor allows the operator to see when the oil is low so they can keep the bar and chain properly lubricated.

STIHL EMATIC SYSTEM

CLICK HERE TO ENLARGE

Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%


Side-Access Chain Tensioner

CLICK HERE TO ENLARGE

The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw.
