STIHL HTA135 Chainsaw - FLEMING'S STIHL Centre Naas Co. Kildare

STIHL
HTA135
BATTERY
POLE PRUNER

Stihl
HTA135
POLE PRUNER

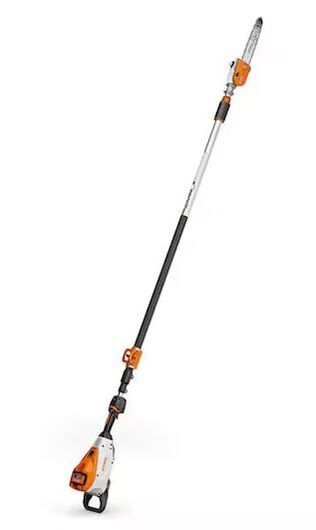

battery-powered telescoping pole pruner with proven, durable construction.

HTA135

With its weather-resistant, high-performance design, the STIHL HTA 135 pole pruner tackles trimming overhead branches with the commercial-grade power and durability of its gas-powered counterparts. It also provides users with the quiet performance and zero exhaust emissions of battery-powered equipment. Featuring a similar durable and field-proven magnesium gearbox to that found on the gas-powered HT 131 and the same shaft as the HT 135, the HTA 135 delivers the cutting performance you have come to expect from STIHL. And its balanced design and ability to quickly and easily extend to over 13 feet helps minimize operator fatigue. With a host of professional features, such as brushless motor, translucent bar and chain oil tank, the included foot mount, onboard battery slot, and variable-speed trigger, the HTA 135 is a true force for pros and demanding homeowners alike.

Specifications :

Cordless technology AP System
Recommended battery AP 200
Bar length 30 cm
Weight with battery 5.9 kg
Rated voltage 36 V
Weight 4.6 kg (1)
Sound pressure level 77 dB(A) (2)
Sound power level 93 dB(A) (2)
Oil tank volume 105 cm³
Vibration value, left 1 m/s2 (3)
Vibration value, right 1 m/s2 (3)
Chain pitch 1/4'' P
Groove width 1.2
Total length (min) 270 cm (4)
Total length (max) 390 cm (5)
Battery technology AP System
Recommended battery AP 200
Working time with AP 200 up to 42 min (6)
Working time with AP 300 S up to 68 min (7)
Protection type EN 60 529 IP20


1)With bar and chain, without cable and chain oil
2)K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3)K-factor according to DIR 2006/42/EC = 2m / s ²
4)Minimum with tool
5)Maximum with tool
6)Working times will vary depending on the application
7)Working times are approximate and may vary depending on application

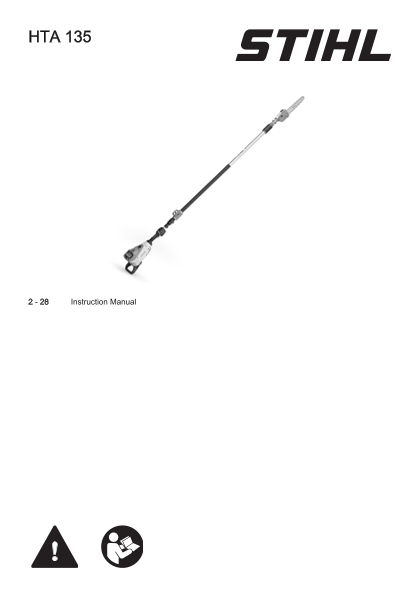

Owners / Instruction Manuals
HTA135 Owners Manuel Click Here

Product Videos

STIHL HTA 135
Standard equipment:

BATTERY-POWERED TELESCOPING POLE PRUNER WITH PROVEN, DURABLE CONSTRUCTION.

BRANCH HOOK

CLICK HERE TO ENLARGE

REMOVAL OF LOOSE CUTTINGS. Thanks to the sturdy branch hook, you can remove loose and cut branches from great heights.

EC-Motor

CLICK HERE TO ENLARGE

Maintenance-free, brushless and efficient STIHL EC motor ensures a longer run time in operation and increased life expectancy.

Tool-free oil tank cap

CLICK HERE TO ENLARGE

Patented special oil tank closure. The tank can be opened and closed quickly, without physical effort and without the need for tools.

Intuitive control handle

CLICK HERE TO ENLARGE

The user-friendly combination of the ergonomic control handle featuring self-resetting locking lever with the Ergo lever ensures an intuitive start-up sequence. Easy operation for right- and left-handed users.

Perfect equipment balance

CLICK HERE TO ENLARGE

The battery’s centre of gravity is located in the shaft axis, ensuring a lower tilting torque which enables fatigue-free working.

Side-mounted chain tensioning

CLICK HERE TO ENLARGE

The tensioning screw is inserted laterally through the sprocket cover, preventing hand contact with the sharp chain and the tips of the claw stop.
