New versatile brushcutter with simplified starting procedure.

                                                                       FS 56 R

CLICK HERE TO ENLARGE

New generation, light-weight petrol brushcutter with straight shaft, loop handle. Modern appearance, convenient operation and very simple starting procedure are the highlights of the new generation STIHL grass trimmer range. The number of steps needed to start the machine has been drastically reduced. The frustration of a flooded engine is virtually eliminated. New 2-stroke engine with stratified charge allows fast acceleration, low emissions, reduced fuel consumption.Comes standard with fully adjustable loop handle and AutoCut mowing head.

---

CLICK HERE TO ENLARGE

Specifications :

Displacement cm ³
Power  kW / hp
Weight kg  (1)
Cutting blade
Overall length M (3)
Fuel capacity l
Sound pressure level dB(A) (2)
Sound power level in dB(A)(2)
Vibration value left/right/s² (4)

27.2
0.8/1.1
4.8
AutoCut mowing head
1.7
0.33
94.0
104.0
6.0/6.6

(1) without cutting tool and deflector
(2) (K) factor according to Dir. 2006/42/EC = 2m/s²
(3) without tool
(4) Power factor according to DIR2006/42/EC=2.5(dB(A))

---

---

 FS 56 R
Standard equipment:

New versatile brushcutter with simplified starting procedure.

Carrying harness :

CLICK HERE TO ENLARGE

Carrying strap As standard, soft padded shoulder strap, which makes working longer more
relaxed, more comfortable and safer.

---

STIHL 2-MIX reduced-emission engine technology :

CLICK HERE TO ENLARGE

2-stroke engine with stratified charge. A fuel-free layer of air is created between
the burned charge in the combustion chamber and the fresh charge in the
crankcase, reducing the amount of fuel lost during the charge cycle. This results
in more power with a lower weight, up to 20% lower fuel consumption than regular
2-stroke engines and significantly reduced exhaust emissions.
More information

---

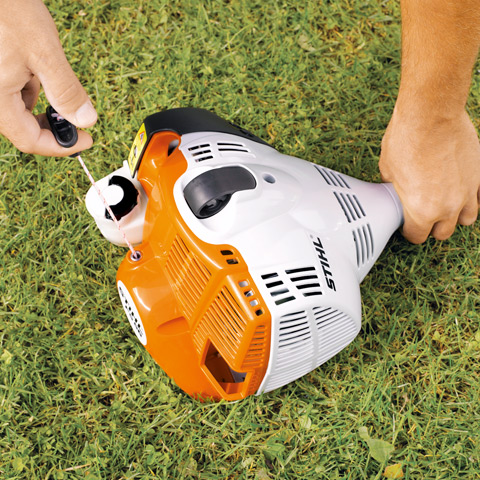

Simplified starting system :

CLICK HERE TO ENLARGE

Simply set the choke, pump the fuel primer, pull the starter cord and away you go!
The running machine then switches off after a brief press of the stop button. Once
the machine is at a standstill, the ignition activates again automatically. Thus the
ignition is always ready for starting.

---

Loop handle (R) :

CLICK HERE TO ENLARGE

The loop handled grass trimmers and brushcutters are ideal for working in areas where
space is limited, e.g. thinning between bushes and shrubs

---

STIHL ErgoStart (E) :

CLICK HERE TO ENLARGE

STIHL ErgoStart (E) Lightweight and strength when starting with an additional
spring between the crankshaft and Anwerfseilrolle. A quiet, steady train enough
to start reliably. Standard on all models with the designation CE.

More information

---

Manual fuel pump (purger) :

CLICK HERE TO ENLARGE

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the
number of starting pulls required following extended breaks in operations.

More information

---

---

Additional features :

ADVANCE PLUS Universal harness :

CLICK HERE TO ENLARGE

Now with a new comfort carry ring for quickly attaching an removing the clearing
saw.

---

Double shoulder harness :

CLICK HERE TO ENLARGE

Soft padding makes work more comfortable during longer jobs.

---

Shoulder strap / carrying system :

CLICK HERE TO ENLARGE

Using a STIHL shoulder strap or carrying harness with soft padding makes work more
comfortable, particularly during lengthy jobs.

---

We present some Product Technology features in STIHL product technology .

NOTE: Deviations from this range and these data are possible depending on the country. Changes in technology, equipment, price and range of accessories are reserved
