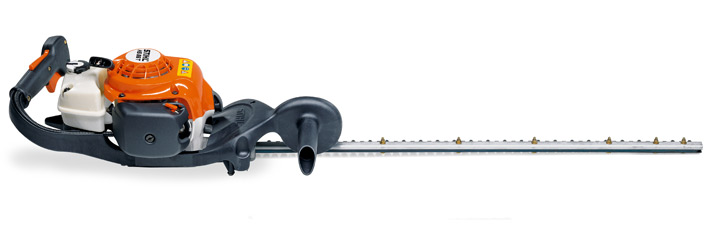

Professional hedge trimmer for cutting back with single-sided blade

                                                                     HS 86 R,   30 inch

CLICK HERE TO ENLARGE

Professional hedge trimmer with single-sided blade to cut back design. Especially suitable for horizontal cuts in always the same amount. Low weight and low vibration levels. Specially designed transmission with up to 3,000 strokes / minute for low speed meter and therefore particularly suitable for a hefty cut.

---

CLICK HERE TO ENLARGE

Specifications :

Displacement cm ³
Power kW / hp
Weight kg (1)
Cutting blade length cm
Total length cm
Tooth spacing mm
Sound pressure level dB(A) (2)
Sound power level in dB(A)(2)
Vibration value left/right/s² (3)
Blade Strokes 1/min

22.7
0.7/1.0
5.5
75
124
38
93.0
104.0
3.3/4.5
3100

(1) (with blade, without fuel)
(2) (K) factor according to Dir. 2006/42/EC = 2m/s²
(3) Power factor according to DIR2006/42/EC=2.5(dB(A))

---

---

 HS 86 R
Standard equipment:

Professional hedge trimmer for cutting back with single-sided blade

Anti-vibration system :

CLICK HERE TO ENLARGE

Intense vibration at the handles of power tools can lead to long-term effects on blood vessels
in the hands and arms. STIHL has therefore developed an effective anti-vibration system
whereby the oscillations from the machine's engine are dampened which significantly reduces
vibrations at the handles.

---

Sided ground blade :

CLICK HERE TO ENLARGE

The double-sided cutting blade is ground on one side. The special blade geometry ensures
high cutting performance. (Illustration similar)

---

Cutting variation (R) :

CLICK HERE TO ENLARGE

The R variations of the STIHL HS 81 and STIHL HS 86 are designed specifically for large volume
cutting. They feature a cutting blade with wide tooth spacing and longer tooth height. The gearing
allows a high cutting power at a medium stroke rate. The R variations provide the possibility of
cutting thicker branches and completing clearing work faster.

---

Sided cutting blade :

CLICK HERE TO ENLARGE

The STIHL hedge trimmer with single-sided blade are suitable for horizontal cuts in always the
same amount. Due to the one-sided knife they are still somewhat easier than equipped with
double-sided cutting blades hedge trimmers. (Illustration similar)

---

Blade protection :

CLICK HERE TO ENLARGE

The comfort models HS 81 R and HS 86 R come standard with a blade protection, which
prevents damage to both blade and gear, but also to hard elements (eg natural stone wall).
This also facilitates cutting close to the ground ground cover.
(Illustration similar)

---

Long-life air filter system :

CLICK HERE TO ENLARGE

Provides long intervals between cleaning and reliable protection of the engine.
(Illustration similar)

---

Tool free filler cap :

CLICK HERE TO ENLARGE

Patented special fuel and oil tank. The tanks so that the engine-equipped devices can be quickly
opened without effort and without tool and resealing
(similar to Fig.)

More information

---

Electronic ignition module :

CLICK HERE TO ENLARGE

This ensures reliable starting and trouble-free running. The ignition system is fully encapsulated
and thus protected from damp and dirt.

---

Manual fuel pump :

CLICK HERE TO ENLARGE

With the manual fuel pump delivers fuel to thumb pressure to the carburetor. This is the
machine after an extended idle period reduces the number of starting strokes (similar).

More information

---

Hanging loop in the handle :

CLICK HERE TO ENLARGE

Integrated into the housing for attaching to the wall mount. This makes the machine safely
and compactly store can be (similar).

---

---

We present some Product Technology features in STIHL product technology .

NOTE: Deviations from this range and these data are possible depending on the country. Changes in technology, equipment, price and range of accessories are reserved

---
