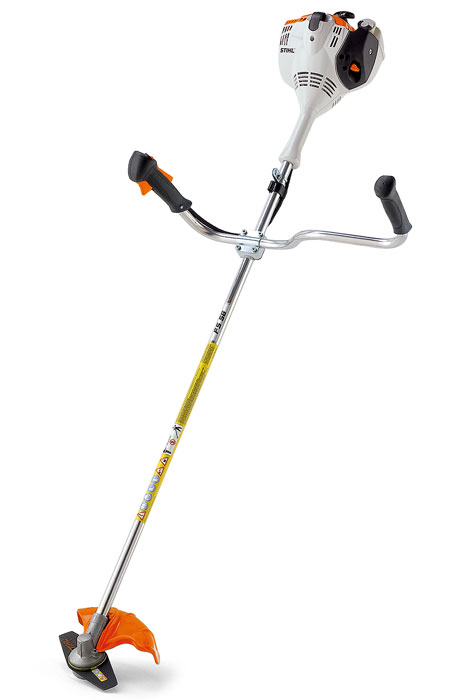

New versatile brushcutter with simplified starting procedure

                                                                 FS 56

CLICK HERE TO ENLARGE

New versatile brushcutter with simplified starting procedure. Two ergonomic handle for mowing large areas. Good trim the lawn and trimming jobs in the private garden plot. With suitable cutting tool also for mowing matted grass, reeds and nettles.

---

CLICK HERE TO ENLARGE

Specifications :

Displacement cm ³
Power  kW / hp
Weight kg  (1)
Cutting blade
Overall length M (3)
Fuel capacity l
Sound pressure level dB(A) (2)
Sound power level in dB(A)(2)
Vibration levels left / right with plastic tool m / s ² (4)
Vibration levels left / right with metal tool m / s ² (4)

27.2
0.8/1.1
5.1
GSB 230-2
1.7
0.34
93.0
104.0
4.7/3.8
4.0/3.1

(1) without cutting tool and deflector
(2) (K) factor according to Dir. 2006/42/EC = 2m/s²
(3) without tool
(4) Power factor according to DIR2006/42/EC=2.5(dB(A))

---

---

 FS 56
Standard equipment:

New versatile brushcutter with simplified starting procedure

Carrying harness :

CLICK HERE TO ENLARGE

Carrying strap As standard, soft padded shoulder strap, which makes working longer more
relaxed, more comfortable and safer.

---

STIHL 2-MIX reduced-emission engine technology :

CLICK HERE TO ENLARGE

2-stroke engine with stratified charge. A fuel-free layer of air is created between
the burned charge in the combustion chamber and the fresh charge in the
crankcase, reducing the amount of fuel lost during the charge cycle. This results
in more power with a lower weight, up to 20% lower fuel consumption than regular
2-stroke engines and significantly reduced exhaust emissions.
More information

---

Bike handle :

CLICK HERE TO ENLARGE

When used in conjunction with a harness, the bike handle enables a smooth mowing action.
The bike handle allows the machine to be easily guided, making it ideal for working on large
areas and thus reducing fatigue.

---

Simplified starting system :

CLICK HERE TO ENLARGE

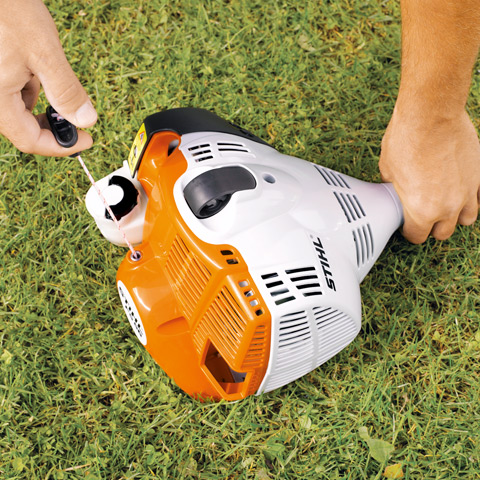

Simply set the choke, pump the fuel primer, pull the starter cord and away you go! The running
machine then switches off after a brief press of the stop button. Once the machine is at a standstill,
the ignition activates again automatically. Thus the ignition is always ready for starting.

---

Single-lever :

CLICK HERE TO ENLARGE

The patented special CAP for the fuel tank. The tank cap can be quickly opened without much
effort and without tools and close again. Level control by transparent
tank. (Illustration similar)

---

• Multi-function control handle :


CLICK HERE TO ENLARGE

Easy, comfortable thumb-operated control means the operator's hand never leaves the
handle.

---

Manual fuel pump (purger) :

CLICK HERE TO ENLARGE

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the
number of starting pulls required following extended breaks in operations.

More information

---

---

Additional features :

ADVANCE PLUS Universal harness :

CLICK HERE TO ENLARGE

Now with a new comfort carry ring for quickly attaching an removing the clearing
saw.

---

Double shoulder harness :

CLICK HERE TO ENLARGE

Soft padding makes work more comfortable during longer jobs.

---

STIHL ErgoStart (E) :

CLICK HERE TO ENLARGE

STIHL ErgoStart (E) Lightweight and strength when starting with an additional
spring between the crankshaft and Anwerfseilrolle. A quiet, steady train enough
to start reliably. Standard on all models with the designation CE.

More information

---

We present some Product Technology features in STIHL product technology .

NOTE: Deviations from this range and these data are possible depending on the country. Changes in technology, equipment, price and range of accessories are reserved
