STIHL MS170 D Chainsaw - FLEMING'S STIHL Centre Naas Co. Kildare

STIHL MS 170
CHAINSAW

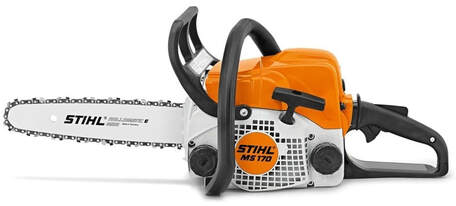

Stihl MS170
Chainsaw
lightweight designed for woodcutting tasks around the home.

MS 170

The Stihl MS 170 Chainsaw is a handy introductory chain saw for thinning out wood, sawing firewood and for felling small trees up to approx. 30 cm in diameter. Light and easy to handle. Convenient single lever master control. Available with 12"/30cm guide bar

Specifications :

Displacement cm ³ 30.1
Power  kW / hp 1.2 / 1.6
Weight kg (1)   4.2
Power to weight ratio kg / kW 3.4
Saw chain Pitch   3/8"P
STIHL Oilomatic chain saw type Rapid micro mini 3 (PMM3)
Sound pressure level dB(A) (2) 100.0
Sound power level in dB(A)(2)   109.0
Vibration value left/right/s² (3) 4,3 / 6,2

(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²

Owners / Instruction Manuals
MS170 Owners Manuel Click Here

Product Videos

STIHL MS 170
Standard equipment:

LIGHTWEIGHT DESIGNED FORWOODCUTTING
AROUND THE HOME

STIHL 2-MIX ENGINE :

CLICK HERE TO ENLARGE

HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.

Anti vibration system:

CLICK HERE TO ENLARGE

Intense vibration at the handles of power tools can lead to long-term effects
on blood vessels in the hands and arms. STIHL has therefore developed an
effective anti-vibration system whereby the oscillations from the machine's
engine are dampened which significantly reduces vibrations at the handles.
(Similar to picture)

STIHL Ematic system:

CLICK HERE TO ENLARGE

The Ematic chain lubrication system ensures pinpoint lubrication of the saw
chain links and guide bar rails. When used with STIHL OILOMATIC saw chain,
it will provide maximum lubrication, longer wear and less oil consumption than
conventional methods of chain lubrication. The Ematic system can reduce bar
oil consumption by up to 50%

Compensator:

CLICK HERE TO ENLARGE

This controller in the carburettor prevents the fuel-air mixture getting richer as
the air filter becomes clogged. The correct quantity of fuel is delivered to the
carburettor depending on the quantity of air passing through the air filter. This
keeps the fuel/air ratio in the combustion mixture constant and hence also the
engine power. The filter doesn't need to be cleaned until an appreciable drop
in power occurs. (Similar to picture)

Single-lever operation:

CLICK HERE TO ENLARGE

The functions of the machine, such as cold and warm startup,
operation and stop, are controlled by a single lever. This makes
the operation especially comfortable and safe, because the right hand
on the handle can remain. (Similar to picture)

Lateral chain tensioning :

CLICK HERE TO ENLARGE

The tensioning screw can be found on the side of chain saw through the
sprocket cover. This removes the need for contact with the sharp saw chain.
(Similar to picture)
