STIHL MS180 Chainsaw

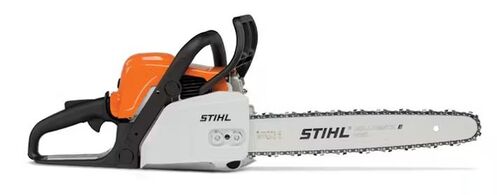

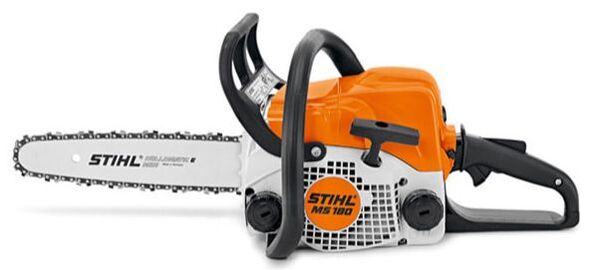

STIHL MS 180
Chainsaw

Stihl MS180
Chainsaw
lightweight designed for woodcutting tasks around the home.

MS 180

The MS 180 chainsaw gets back to basics with improved engine air flow and shroud design. With its improved design comes enhanced engine cooling and air filtration, giving you more consistent performance in the field. Make quick work of trimming branches, cutting small trees, and clearing fallen limbs after a storm. If you’re looking for a reliable, light-duty chainsaw for occasional use, the MS 180 is a value you can’t ignore.

Specifications :

Displacement 31,8 cm³
Power output 1,4/1,9 kW/PS
Weight 4,1 kg(1)
Power-to-weight ratio 3 kg/kW
Sound pressure level 100 dB(A)(2)
Sound power level 112 dB(A)(3)
Vibration level left/right 6,6/7,8 m/s²(4)
Saw chain pitch 3/8"P
STIHL Oilomatic saw chain type PMM3

1) Without fuel, without bar and chain
2) K-factor according to DIR 2006/42/EC = 2.5 (dB (A))
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4) K-factor according to DIR 2006/42/EC = 2m / s ²

Owners / Instruction Manuals
MS180 Owners Manuel Click Here

Product Videos

STIHL MS 180
Standard equipment:

LIGHTWEIGHT DESIGNED FOR
WOODCUTTING AROUND THE HOME

STIHL 2-MIX ENGINE :

CLICK HERE TO ENLARGE

HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.

Anti vibration system:

CLICK HERE TO ENLARGE

Intense vibration at the handles of power tools can lead to long-term effects
on blood vessels in the hands and arms. STIHL has therefore developed an
effective anti-vibration system whereby the oscillations from the machine's
engine are dampened which significantly reduces vibrations at the handles.
(Similar to picture)

STIHL Ematic system:

CLICK HERE TO ENLARGE

The Ematic chain lubrication system ensures pinpoint lubrication of the saw
chain links and guide bar rails. When used with STIHL OILOMATIC saw chain,
it will provide maximum lubrication, longer wear and less oil consumption than
conventional methods of chain lubrication. The Ematic system can reduce bar
oil consumption by up to 50%

Compensator:

CLICK HERE TO ENLARGE

This controller in the carburettor prevents the fuel-air mixture getting richer as
the air filter becomes clogged. The correct quantity of fuel is delivered to the
carburettor depending on the quantity of air passing through the air filter. This
keeps the fuel/air ratio in the combustion mixture constant and hence also the
engine power. The filter doesn't need to be cleaned until an appreciable drop
in power occurs. (Similar to picture)

Single-lever operation:

CLICK HERE TO ENLARGE

The functions of the machine, such as cold and warm startup,
operation and stop, are controlled by a single lever. This makes
the operation especially comfortable and safe, because the right hand
on the handle can remain. (Similar to picture)

Lateral chain tensioning :

CLICK HERE TO ENLARGE

The tensioning screw can be found on the side of chain saw through the
sprocket cover. This removes the need for contact with the sharp saw chain.
(Similar to picture)
