Powerful 1.0 kW-reach hedge trimmer with 4-MIX ® engine and a long shaft

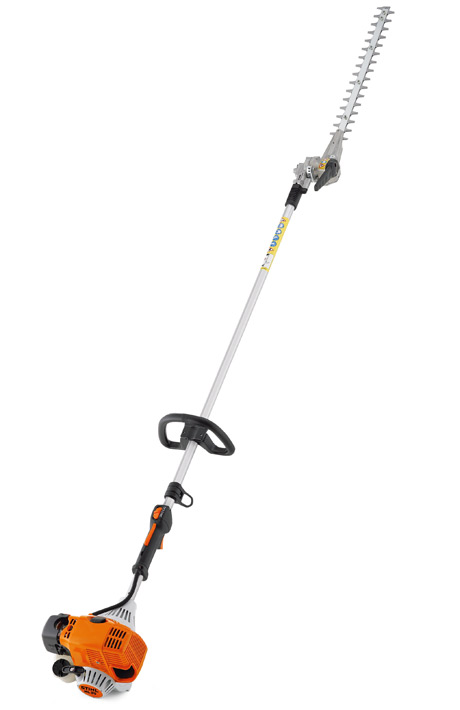

                                                          HL 100, 135° adjustable

CLICK HERE TO ENLARGE

Long Shaft version. Long reach hedge trimmer with patented 4-MIX engine giving more power, increased torque and a more pleasant sound. 135° adjustable working blade range with 13 lockable points including 270° storage and transportation point. Suitable for reaching tall hedges without the need of ladders. Overall length 2.48 m.

---

CLICK HERE TO ENLARGE

Specifications :

Displacement cm ³
Power kW / hp
Weight kg (1)
Cutting blade length cm
Total length cm
Tooth spacing mm
Sound pressure level dB(A) (2)
Sound power level in dB(A)(2)
Vibration value left/right/s² (3)
Blade Strokes 1/min

(1) With tool, without fuel
(2) (K) factor according to Dir. 2006/42/EC = 2m/s²
(3) Power factor according to DIR2006/42/EC=2.5(dB(A))

CLICK HERE TO ENLARGE

31.4
1.05/1.4
6.9
50
248
35
88.0
101.0
4.2/4.9
4100

---

---

 HL 100
Standard equipment:

Powerful 1.0 kW-reach hedge trimmer with 4-MIX ® engine and a long shaft

STIHL 4-MIX-Motor :

CLICK HERE TO ENLARGE

You can always rely on STIHL to keep setting new benchmarks this time with 4-stroke
mixed lubrication technology. The STIHL 4-MIX engine, which runs on a fuel-oil mix just
 like a 2-stroke, offers the benefits without the compromises of 4-stroke power. STIHL
4-MIX engine technology provides fast acceleration, more power, added torque, lower
noise, reduced emissions and increased fuel efficiency to complete jobs quickly, quietly
and more easily.

---

Easy and quick adjustment 135 ° :

CLICK HERE TO ENLARGE

The cutter bar can be gradually up to 135 ° in two directions and can adjust folded up
for transport parallel to the shaft and are locked (transport position).

---

Suspension eye :

CLICK HERE TO ENLARGE

The Hook for the shoulder strap can be rotated, so that the appliance can be swung easily.

---

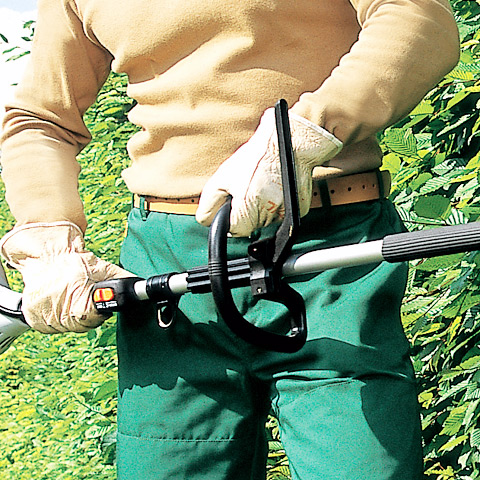

Loop handle :

CLICK HERE TO ENLARGE

The loop handle provides freedom for movement and ease of operation, even under
cramped conditions.

---

Anti-vibration system :

CLICK HERE TO ENLARGE

Intense vibration at the handles of power tools can lead to long-term effects on blood
vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration
system whereby the oscillations from the machine's engine are dampened which
significantly reduces vibrations at the handles.

---

Shoulder strap / carrying system :

CLICK HERE TO ENLARGE

Using a STIHL shoulder strap or carrying harness with soft padding makes work more
comfortable, particularly during lengthy jobs

---

Multi-function control handle :

CLICK HERE TO ENLARGE

This houses all the engine controls. Easy, comfortable thumb-operated control means the
operator's hand never leaves the handle.

---

Decompression system :

CLICK HERE TO ENLARGE

The decompression system allows some of the compression pressure in the cylinder to
escape, so less force on the starter rope is needed.

---

Manual fuel pump (purger) :

CLICK HERE TO ENLARGE

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces
the number of starting pulls required following extended breaks in operations.

More information

---

---

We present some Product Technology features in STIHL product technology .

NOTE: Deviations from this range and these data are possible depending on the country. Changes in technology, equipment, price and range of accessories are reserved

---
