Handy cordless hedge trimmer

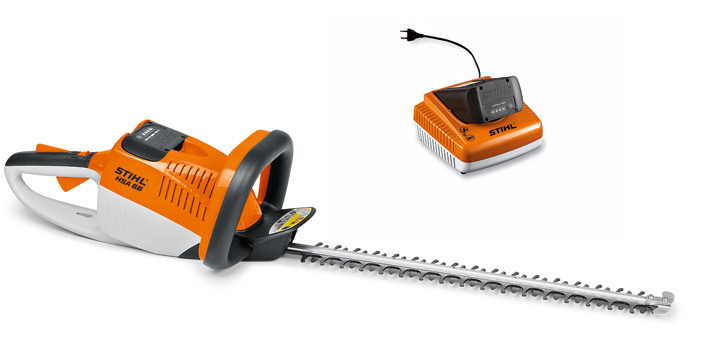

HSA 66 With Battery & Charger
CLICK HERE TO ENLARGE
With reduced weight and an improved EC-motor, the new HSA 66 is quiet, light, has increased cutting performance and maintains a constant stroke rate even during tough jobs. The wide tooth spacing and new droplet-shaped cutter geometry holds twigs more effectively in the teeth for a powerful cut. Machine life is also improved with a wear protective film under the cutting bar and new tip protector. The cutter blade has single-edged teeth.
CLICK HERE TO ENLARGE
CLICK HERE TO ENLARGE
|
Specifications :
Weight without battery kg (1) Weight with battery AP 80 kg (1) Cutting blade length cm Battery technology Tooth spacing mm Sound pressure level dB(A) (2) Sound power level in dB(A)(2) Vibration value left/right/s² (3) Blade Strokes 1/min Total length cm Section thickness (max) mm Recommended battery AP 80 battery runtime with min (4) AP 120 battery runtime with min (4) AP 160 battery runtime with min (4) AP 180 battery runtime with min (4) Battery runtime with AR 900 min (4) |
3.1 4.2 50 Lithium-Ion 30 83.0 94.0 3.7/2.3 3000 103 M 23 AP 80VVV 60 90 M 120 140 660 |
|
(1) without blade guard
(2) K factor according to DIR 2006/42/EC = 2.5 (dB (A) (3) K factor according to DIR 2006/42/EC = 2m / s ² (4) Running times are approximate and may vary vary by application. |
PRODUCT VIDEO
|
|
|

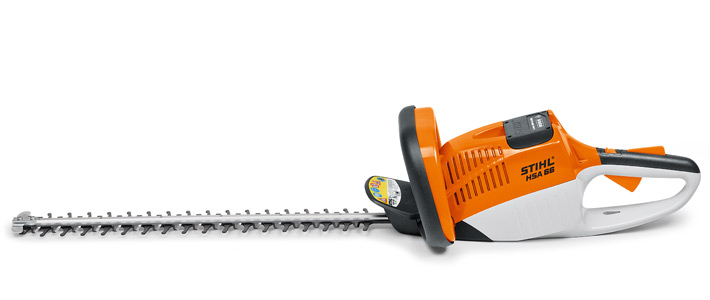

HSA 66
|
|
Handy cordless hedge trimmer
Optimized cut angle :
CLICK HERE TO ENLARGE
The optimized cut angle of 34 ° ensures high cutting power and a more aggressive cutting
action.
action.
STIHL EC motor :
CLICK HERE TO ENLARGE
The maintenance-free brushless EC motor ensures a longer run time in operation and increased
life expectancy. Controlling the motor with the new STIHL EC-Electronics, which recognizes stress
as through thick branches and adjusts the engine speed so that the stroke rate remains constant
during the cut. Optimized gear with overload protection for added durability.
life expectancy. Controlling the motor with the new STIHL EC-Electronics, which recognizes stress
as through thick branches and adjusts the engine speed so that the stroke rate remains constant
during the cut. Optimized gear with overload protection for added durability.
Innovative cutting system :
CLICK HERE TO ENLARGE
Protruding drops keep the road during the cut of the knife. The average performance is increased
significantly so.
significantly so.
Double sided cutting blades :
CLICK HERE TO ENLARGE
STIHL hedge trimmers with double-sided cutting blades cut both vertically and horizontally.
Two handed design :
CLICK HERE TO ENLARGE
The tool is easily started by activating both switches on the loop handle and the rear handle
at the same time. The cutting speed is continuously variable using the rear control, for a fine
and precise cut. The two handed design is suitable for both left and right-handed users.
at the same time. The cutting speed is continuously variable using the rear control, for a fine
and precise cut. The two handed design is suitable for both left and right-handed users.
Variable speed control and ergonomic loop handle :
CLICK HERE TO ENLARGE
The ergonomic loop handle is ideal for working in any direction and ensures energy saving if
working over longer periods.
working over longer periods.
Blade tip protector :
CLICK HERE TO ENLARGE
The tip protector comes as standard and makes cutting near the ground or along walls easier
while protecting the special cutters from damage.
while protecting the special cutters from damage.
Functional design :
CLICK HERE TO ENLARGE
The engine housing has smooth surfaces and round contours. This prevents the tool from getting
caught on branches. The hedge trimmers are easy to clean.
caught on branches. The hedge trimmers are easy to clean.
Blade cover :
CLICK HERE TO ENLARGE
Protects the cutting blade for safe storage and transport.
Hanging eye :
CLICK HERE TO ENLARGE
The hedge trimmers can also be conveniently hung up on the wall with the practical hanging eye.
36 V Li-Ion battery :
CLICK HERE TO ENLARGE
The 36 V lithium-Ion battery allows for a maximum running time of up to 45 minutes with
the cordless hedge trimmers. The battery is centrally positioned in the machine to ensure
optimum balance and user comfort.
the cordless hedge trimmers. The battery is centrally positioned in the machine to ensure
optimum balance and user comfort.
Fast charging time:
CLICK HERE TO ENLARGE
A choice of two chargers are available for the battery AP 80: the standard charger AL 100
and the quick charger AL 300. The only difference between these stand-alone chargers is
their charging times. The AL 100 charges at a low rate and the AL 300 offers quick charging.
and the quick charger AL 300. The only difference between these stand-alone chargers is
their charging times. The AL 100 charges at a low rate and the AL 300 offers quick charging.
We present some Product Technology features in STIHL product technology .
NOTE: Deviations from this range and these data are possible depending on the country. Changes in technology, equipment, price and range of accessories are reserved
|
|
|
|
