FSA 135R STIHL Battery Strimmer

FSa 135R
CORDLESS
brushcutteR

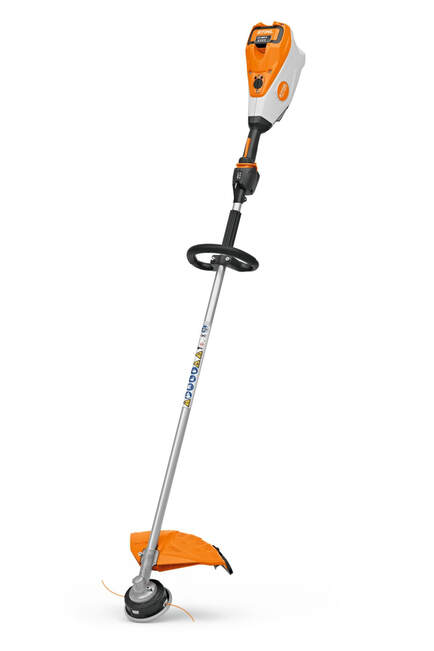

FSA135R CORDLESS BRUSHCUTTER: POWERFUL CORDLESS BRUSHCUTTER WITH LOOP HANDLE AND AUTOCUT C 26-2 MOWING HEAD

fsa 135R

Robust and powerful cordless brushcutter with an AP battery slot in the power tool. For mowing grass and scrub in noise sensitive settings. Max. cutting circle diameter 420 mm with AutoCut head. Ergonomic control handle with three level speed pre-selection and LED display as well as infinitely variable speed control, loop handle, single shoulder harness, universal guard, air filter for long service life. Versatile use due to wide range of STIHL cutting tools. Supplied with AutoCut mowing head.
Working time with nylon mowing head, using recommended AP 300 S battery, is up to 45 minutes.

Individual tool without battery and without charger
High-powered cordless brushcutter for professionals in garden and landscape maintenance
Durable air filter with metal mesh for optimum engine cooling
Can be used with different cutting tools depending on requirements
IPX4 rated for working in all weather

Specifications :

Cordless technology AP System
Standard cutting tool AutoCut C 26-2
Recommended battery AP 300 S
Sound power level 94 dB(A) (1)
Sound pressure level 81 dB(A) (1)
Rated voltage 36 V
Weight 4.3 kg
Sound pressure level 80 dB(A) (2)
Sound power level 92 dB(A) (2)
Vibration value, left, with line head
3.7 m/s2 (3)
Vibration value, right, with line head
1.8 m/s2 (3)
Vibration levels, left, with metal blade
2.9 m/s2 (3)
Vibration level, right, with metal blade
2.9 m/s2
Total length 184 cm (4)
Cutting diameter 420 mm
Standard cutting tool AutoCut C 26-2

1)K-Wert nach RL 2006/42/EG = 2,0 dB(A)
2)K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3)K-factor according to DIR 2006/42/EC = 2m / s ²
4)Without cutting attachment

Owners / Instruction Manuals
FSA 135R Owners Manuel Click Here

PRODUCT VIDEOS :

fsa 135R
STANDARD EQUIPMENT:

POWERFUL CORDLESS BRUSHCUTTER WITH LOOP HANDLE

ERGONOMIC CONTROL HANDLE WITH SPEED CONTROL

CLICK HERE TO ENLARGE

EASY ADJUSTMENT OF POWER TOOL PERFORMANCE. Quickly and conveniently adjust the speed of your power tool to the respective work situation. Doing so reduces energy consumption at low speeds, and in this way extends the battery runtime. The practical control handle with speed control allows you to make the relevant adjustment without having to change your grip or pause work.

METAL MESH AIR FILTER

CLICK HERE TO ENLARGE

OPTIMAL ENGINE COOLING. The air filter with fine metal mesh cleans the air and in this way ensures optimum engine cooling. As it is itself easy to clean, it also offers a long service life.

Retaining Latch

CLICK HERE TO ENLARGE

All STIHL battery-powered products feature a retaining latch that is designed to prevent the unit from unintentional starts when the battery is inserted.

STIHL Electric Motor (EC)

CLICK HERE TO ENLARGE

The STIHL electric motor (EC) is extremely energy efficient, lightweight and compact. It runs quietly, generates very low vibrations and does not require servicing.
