STIHL
HTA66
BATTERY
POLE PRUNER

Stihl
HTA66
POLE PRUNER

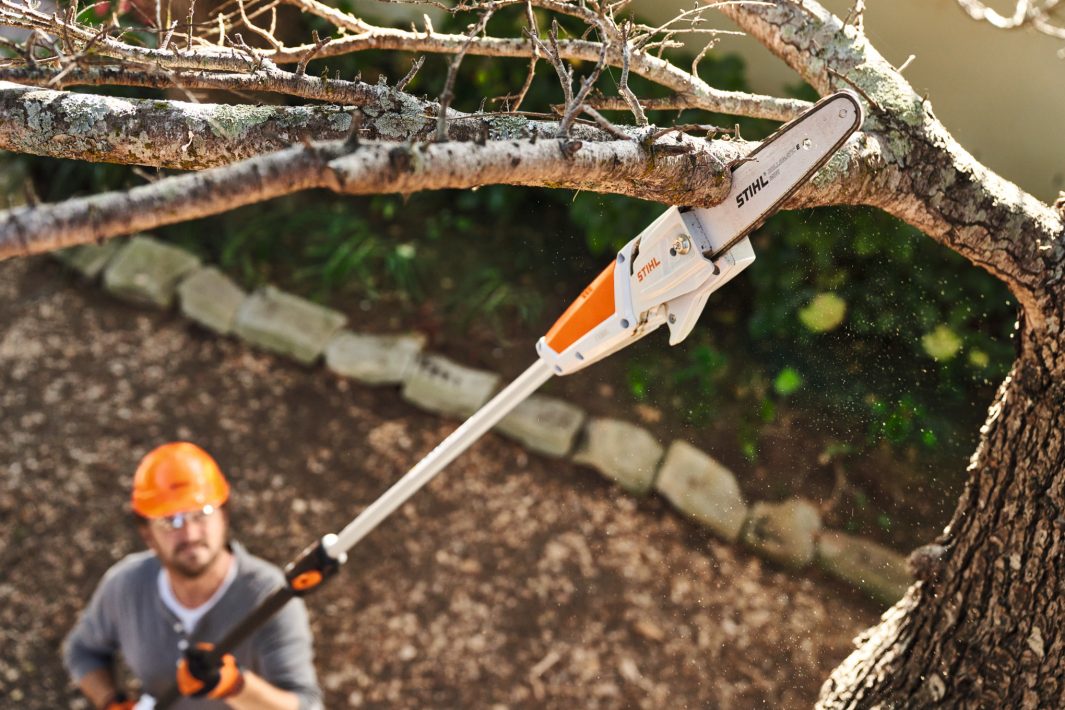

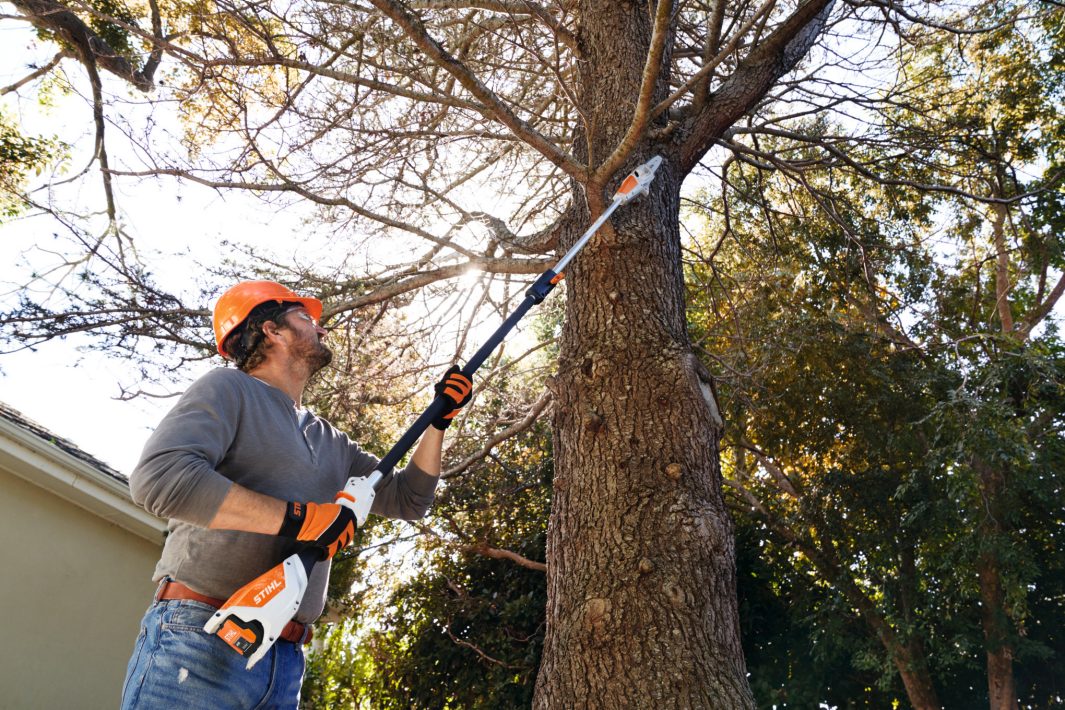

VERY LIGHTWEIGHT CORDLESS POLE PRUNER

HTA66

Very lightweight and quiet yet powerful cordless pole pruner for grounds, garden and orchard maintenance. Fitted with 1/4" PM3 saw chain for low vibration and a clean, precise cut. Lightweight power head for easy manoeuvrability and good balance. Side-mounted chain tensioning and captive nut on the sprocket cover. With branch hook to assist removal of cuttings. Rigid shaft - not extendable. Total length 240 cm. Working time with recommended AP 200 battery is up to 42 minutes. Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.

Individual tool without battery and without charger
Lightweight cordless pole pruner for tree and shrub maintenance
Pruning and tree crown maintenance in the professional and private sector
Intuitive control handle suitable for both right-handed and left-handed use
Safe removal of loose branches up to a height of 5 m with robust branch hooks
Fast refilling of the oil tank with tool-free tank cap
IPX4 rated for working in all weather

Specifications :

Cordless technology AP System
Recommended battery AP 200
Bar length 25 cm
Weight with battery 4.6 kg
Rated voltage 36 V
Weight 3.3 kg (1)
Sound pressure level 78 dB(A) (2)
Sound power level 93 dB(A) (2)
Vibration value, left 1 m/s2 (3)
Vibration value, right 1 m/s2 (3)
Chain pitch 1/4'' P
Groove width 1.2
Total length (max) 240 cm (4)
Battery technology AP System
Recommended battery AP 200
Working time with AP 200 up to 42 min (5)
Working time with AP 300 S up to 68 min (6)
Protection type EN 60 529 IP20


1)With bar and chain, without cable and chain oil
2)K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3)K-factor according to DIR 2006/42/EC = 2m / s ²
4)Maximum with tool
5)Working times will vary depending on the application
6)Working times are approximate and may vary depending on application

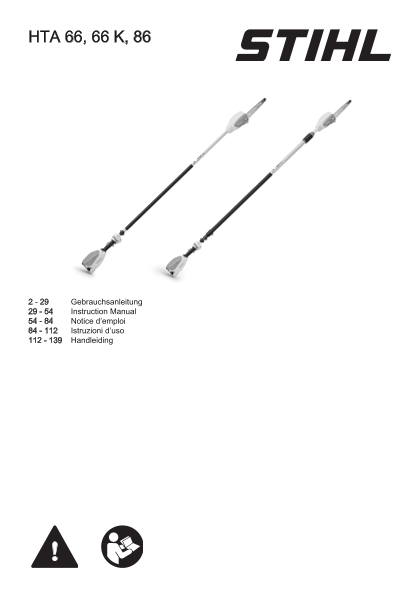

Owners / Instruction Manuals
HTA66 Owners Manuel Click Here

Product Videos

STIHL HTA 66
Standard equipment:

VERY LIGHTWEIGHT CORDLESS POLE PRUNER

BRANCH HOOK

CLICK HERE TO ENLARGE

REMOVAL OF LOOSE CUTTINGS. Thanks to the sturdy branch hook, you can remove loose and cut branches from great heights.

EC-Motor

CLICK HERE TO ENLARGE

Maintenance-free, brushless and efficient STIHL EC motor ensures a longer run time in operation and increased life expectancy.

Tool-free oil tank cap

CLICK HERE TO ENLARGE

Patented special oil tank closure. The tank can be opened and closed quickly, without physical effort and without the need for tools.

Intuitive control handle

CLICK HERE TO ENLARGE

The user-friendly combination of the ergonomic control handle featuring self-resetting locking lever with the Ergo lever ensures an intuitive start-up sequence. Easy operation for right- and left-handed users.

Perfect equipment balance

CLICK HERE TO ENLARGE

The battery’s centre of gravity is located in the shaft axis, ensuring a lower tilting torque which enables fatigue-free working.

Side-mounted chain tensioning

CLICK HERE TO ENLARGE

The tensioning screw is inserted laterally through the sprocket cover, preventing hand contact with the sharp chain and the tips of the claw stop.

STIHL EMATIC SYSTEM

CLICK HERE TO ENLARGE

Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%

Multi-Function Control Handle

CLICK HERE TO ENLARGE

Having easy access to all of the controls on one comfortable handle helps makes it easier to complete tasks so the operator’s hand never has to leave the handle.
