Extremely light 1.0 kW arborist chain saw

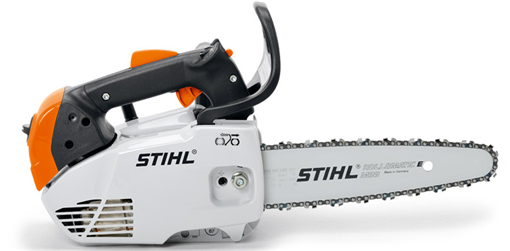

MS 150 TC-E STIHL CHAINSAW 10 & 12 inch { fan cover side }
CLICK HERE TO ENLARGE
Ideal for cutting back trees, professional pruning, limited crown reduction and working from a cherry picker. This lightweight champion of STIHL arborist saws delivers high cutting performance for its class with fine cut surfaces and has a good power-to-weight ratio. With ErgoStart as standard.

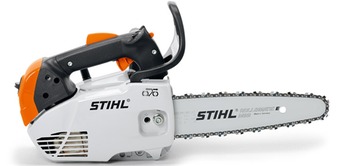

MS 150 TC-E STIHL CHAINSAW 10 & 12 inch { bar cover side
 CLICK HERE TO ENLARGE
|
Specifications :
Displacement cm ³ Power kW / hp Weight kg (1) Power to weight ratio kg / kW Saw chain Pitch STIHL Oilomatic chain saw type Sound pressure level dB(A) (2) Sound power level in dB(A)(2) Vibration value left/right/s² (3) |
23.6 1.0 / 1.3 2.6 2.6 1/4 "P PM3 97.0 108.0 4,9 / 4,9 |
(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²
|
|
|
|
|
MS 150 TC-E
|
|
Extremely light 1.0 kW arborist chain saw
Service-friendly air filter system :
CLICK HERE TO ENLARGE
Easy access and easy to clean air filter system
(Similar to picture)
(Similar to picture)
STIHL ErgoStart (E) :
CLICK HERE TO ENLARGE
STIHL ErgoStart (E)
A genuine advance in easy starting. STIHL ErgoStart (E) cuts the effort
required to start the tool by half, while the starter cord can be pulled at
just one third of the normal force. All it takes is 2 fingers and a gentle
pull action. (Similar to picture)
More information
A genuine advance in easy starting. STIHL ErgoStart (E) cuts the effort
required to start the tool by half, while the starter cord can be pulled at
just one third of the normal force. All it takes is 2 fingers and a gentle
pull action. (Similar to picture)
More information
STIHL 2-MIX reduced-emission engine technology :
CLICK HERE TO ENLARGE
2-stroke engine with stratified charge. A fuel-free layer of air is created between
the burned charge in the combustion chamber and the fresh charge in the crankcase,
reducing the amount of fuel lost during the charge cycle. This results in more power
with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines
and significantly reduced exhaust emissions.
More information
the burned charge in the combustion chamber and the fresh charge in the crankcase,
reducing the amount of fuel lost during the charge cycle. This results in more power
with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines
and significantly reduced exhaust emissions.
More information
Long term filtration system with pre-separation:
CLICK HERE TO ENLARGE
STIHL long-life air filtration systems with pre-separation achieve perceptibly
longer filter life compared with conventional filter systems. Air drawn in is
swirled. The larger, heavier particles are ejected. The pre-cleaned air is
routed to the air filter via the pre-separator duct.
(Similar to picture)
More information
longer filter life compared with conventional filter systems. Air drawn in is
swirled. The larger, heavier particles are ejected. The pre-cleaned air is
routed to the air filter via the pre-separator duct.
(Similar to picture)
More information
Fold Hook :
CLICK HERE TO ENLARGE
Fold Hook
The fold-out hook serves as a carrying rope attachment .
(Similar to picture)
The fold-out hook serves as a carrying rope attachment .
(Similar to picture)
Manual fuel pump (Purger) :
CLICK HERE TO ENLARGE
A small fuel pump delivers fuel to the carburettor at the touch of a button.
This reduces the number of starting strokes required following extended
breaks in operations.
(Similar to picture)
More information
This reduces the number of starting strokes required following extended
breaks in operations.
(Similar to picture)
More information
Tool-less tank lid:
CLICK HERE TO ENLARGE
Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)
More information
Special catches on the fuel and oil tanks for easy opening and locking without
the need for tools
(Similar to picture)
More information
Lateral chain tensioning :
CLICK HERE TO ENLARGE
Side chain tensioner
The tensioning screw can be found on the side of chain saw through the sprocket cover.
This removes the need for contact with the sharp saw chain.
(Similar to picture)
The tensioning screw can be found on the side of chain saw through the sprocket cover.
This removes the need for contact with the sharp saw chain.
(Similar to picture)
STIHL 4-channel technology :
CLICK HERE TO ENLARGE
Advanced combustion technology
Four overflow channels swirl the fuel-air mix before ignition, allowing for optimum
combustion and highly efficient performance. The result is lower fuel consumption
and high torque across a broad rpm range.
(Similar to picture)
Four overflow channels swirl the fuel-air mix before ignition, allowing for optimum
combustion and highly efficient performance. The result is lower fuel consumption
and high torque across a broad rpm range.
(Similar to picture)
Anti vibration system:
CLICK HERE TO ENLARGE
In the longer term, strong vibrations at the handle points
of motor equipment can lead to poor circulation in hands and
arms. STIHL has therefore developed a high quality anti vibration system.Motor
devices with AV system, the vibrations generated by the engine and the
working environment, be substantially reduced at the handle points.
(Similar to picture)
of motor equipment can lead to poor circulation in hands and
arms. STIHL has therefore developed a high quality anti vibration system.Motor
devices with AV system, the vibrations generated by the engine and the
working environment, be substantially reduced at the handle points.
(Similar to picture)
STIHL Ematic system:
CLICK HERE TO ENLARGE
Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods
of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods
of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%
Compensator:
CLICK HERE TO ENLARGE
The STIHL compensator, a control system in the carburettor, ensures
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)
that despite increasing pollution of the air filter engine performance, exhaust
quality and fuel consumption over a long period remain almost constant.
Only when a noticeable performance degradation occurs,
the air filter must be cleaned. So, very long working
intervals without maintenance are possible. (Similar to picture)
