STIHL MSA160 C-B Chainsaw - FLEMING'S STIHL Centre Naas Co. Kildare

STIHL
MSA 160 C-B
BATTERY
CHAINSAW

Stihl
MSA 160 C-B
BATTERY
Chainsaw

INNOVATIVE NEW CORDLESS CHAIN SAW

MSA 160 C-B

The first STIHL cordless chain saw with outstanding cordless cutting power. This 36 V powerhouse fulfils even the highest demands for performance and working comfort and is the perfect assistant for property maintenance, horticulture, cutting firewood and sawing work in enclosed areas. With new, low-vibration and low-kickback 1/4" PM3 saw chain and 30cm/12" long guide bar for branches and small trees with a maximum diameter of 20 cm.

Specifications :

Bar length 30 cm
Bar length 12 in
Rated voltage 36 V
Weight 3.5 kg (1)
Sound pressure level 85 dB(A) (2)
Sound power level 93 dB(A) (3)
Vibration levels left/right 4.6/3.9 m/s2 (4)
Chain gauge 1/4"P
Battery system AP System
Recommended battery AP 200
Working time with AP 200 battery up to 42 min (5)
Working time with AP 300 battery up to 50 min(6)
Working time with AP 300 S battery up to 62 min (7)
Working time with AP 500 S battery 74 min (6)
Protection type EN 60 529 IPX4


1)Without battery, with guide bar and saw chain
2)K-factor according to DIR 2006/42/EC = 2.5 (dB (A))
3)K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4)K-factor according to DIR 2006/42/EC = 2m / s ²
5)Working times vary depending on the application
6)Working times can vary depending on use and application
7)Battery working times are approximate and may vary depending on application

Owners / Instruction Manuals

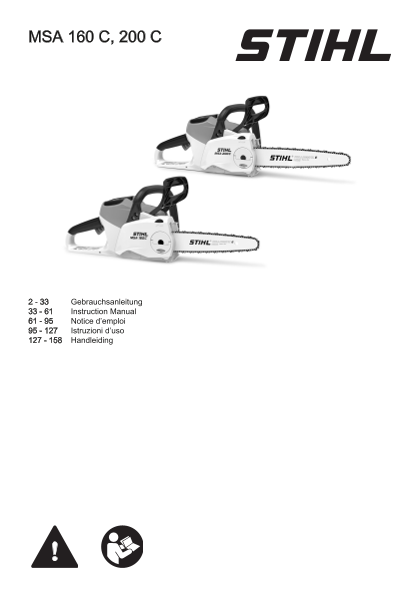

MSA160 C-B Owners Manuel Click Here

Product Videos

STIHL MSA160 C-B
Standard equipment:

INNOVATIVE NEW CORDLESS CHAIN SAW

QuickStop Super Chain Brake (Q)

CLICK HERE TO ENLARGE

The additional braking system for extra safety. Users can trigger the chain brake directly at the rear handle. The chain stops in seconds whenever the user lets go of the rear handle and whenever there is sufficiently strong kickback or when the front hand guard is activated. This unique safety feature ensures even more user protection in all working positions.

STIHL Chain Quick Tensioning (B)

CLICK HERE TO ENLARGE

The STIHL chain quick tensioning system (B) makes it very easy to tension the chain. Just release the sprocket cover and turn the knob to set the optimum tension. No tools needed.


CONTROL HANDLE

CLICK HERE TO ENLARGE

FOR OPTIMISED ERGONOMICS. Thanks to the soft components on the control handle, your work tool sits comfortably in the hand and allows you to work efficiently.


STIHL ELECTRIC MOTOR

CLICK HERE TO ENLARGE

The STIHL electric motor (EC) is extremely energy efficient, lightweight and compact.
It runs quietly, generates very low vibrations and does not require servicing.

QUICKSTOP SUPER CHAIN BRAKE

CLICK HERE TO ENLARGE

STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.

Toolless filler cap

CLICK HERE TO ENLARGE

The tank can be filled quickly and easily using the toolless filler cap.

STIHL EMATIC SYSTEM

CLICK HERE TO ENLARGE

Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain
links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide
maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50%


TWO-HANDED OPERATION

CLICK HERE TO ENLARGE

ENSURES COMFORTABLE WORK. Your STIHL chainsaw has an ergonomically shaped handle and a comfortable rear control handle with soft components. Thanks to this two-handed operation, you can work comfortably, effortlessly and safely in all positions.
