STIHL MS201 TC-M Chainsaw - FLEMING'S STIHL Centre Naas Co. Kildare

STIHL
MS 201 TC-M
CHAINSAW

Stihl
MS201 TC-M
Chainsaw

lightweight and powerful for efficient tree maintenance

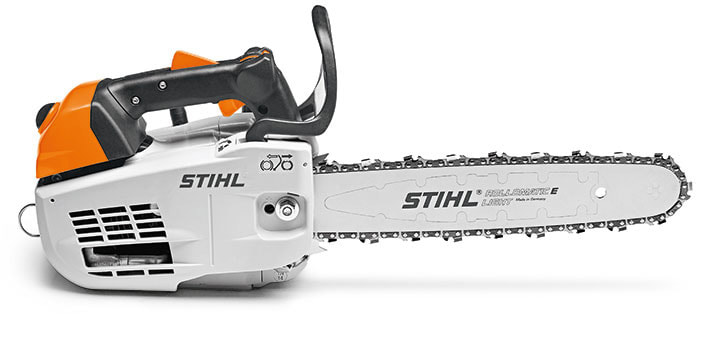

MS 201 TC-M

The MS 201 TC-M is STIHL's most powerful top handle chainsaw. Comes as standard with M-Tronic and 2-MIX technology, providing optimum engine performance from the start. The captive nut on the sprocket cover allows for quick changing of the chain. The lightweight guide bar reduces the overall weight and keeps the saw perfectly balanced. Featuring our innovative STIHL anti-vibration system, the saw is comfortable to use over longer periods. Top handle saws are specially designed for working in an aerial environment and can only be used by trained professionals. The MS 201 TC-M top handle chainsaw is available in various bar lengths and is ideal for all the tasks an arborist faces on a daily basis.


Specifications :

Displacement cm ³ 35.2
Power kW / hp 1.8/ 2.4
Weight kg 3.7(1)
Power to weight ratio kg / kW 2.1
Saw chain Pitch 3/8"P
STIHL Oilomatic chain saw type
Picco Super (PS3)
Sound pressure level dB(A) 100.0(2)
Sound power level in dB(A) 113.0 (2)
Vibration value left/right/s² 3,5/ 3,1(3)


(1) without bar/chain
(2) K-factor Directive 2006/42/EC according to 2.5 DB(a)) =
(3) K-factor Directive 2006/42/EC according to = 2 m/s²

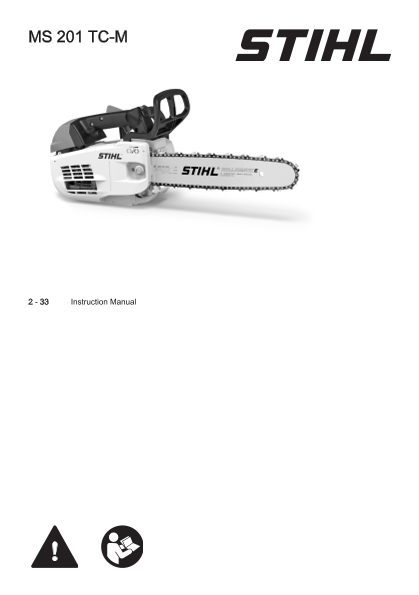

Owners / Instruction Manuals
MS201 TC-M Owners Manuel Click Here

Product Videos

STIHL MS 201 TC-M
Standard equipment:

LIGHTWEIGHT AND POWERFUL FOR EFFICIENT TREE MAINTENANCE

STIHL M-Tronic (FT)

CLICK HERE TO ENLARGE

For a cold start, the STIHL M-Tronic only needs one start position on the combi-lever. After starting, you can immediately power up to full speed. The amount of fuel required is precisely calculated by the system and supplied as needed. Otherwise, start in position I as usual.

FOLDABLE HANGING LOOP

CLICK HERE TO ENLARGE

SECURE HANDLING. Thanks to the fold-out hook, you can attach the tool to a suspension rope, then pull it up into the treetop or lower it down from there. You can also use it to secure the power tool. When folded away, the hook does not interfere with work or storage.

STIHL Ematic System

CLICK HERE TO ENLARGE

Compared to conventional bars without Ematic, the STIHL Ematic system reduces the consumption of chain lubricant by up to 50 %, depending on the type of wood and the cutting attachment used. This system comprises a STIHL Ematic or Ematic S guide bar, a STIHL Oilomatic saw chain and a variable-flow or reduced-flow oil pump. As a result, virtually every drop of chain lubricant is delivered to exactly the right spot.

STIHL FOUR-CHANNEL TECHNOLOGY

CLICK HERE TO ENLARGE

FOR LOWER FUEL CONSUMPTION AND HIGH PERFORMANCE. Thanks to STIHL four-channel technology, you can work with your power tool with very low fuel consumption and high performance. The four overflow channels guide the fuel-and-air mixture into the cylinder in a targeted and more compressed manner, which optimally burns the fuel and significantly increases the performance of the engine.

Compensator

CLICK HERE TO ENLARGE

REDUCED MAINTENANCE. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.

SIDE-MOUNTED CHAIN TENSIONING

CLICK HERE TO ENLARGE

FOR SIMPLE AND SECURE RE-TENSIONING. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.

CONTROLLED-DELIVERY OIL PUMP

CLICK HERE TO ENLARGE

OIL CONSUMPTION BASED ON NEED. The controlled-delivery oil pump reduces your chainsaw’s oil consumption by up to 50%. To use it, simply select the E position. For very long cutting attachments or very dry wood, an additional oil volume can be set by the user.

Tool free fuel caps

CLICK HERE TO ENLARGE

Special caps to open and close the tank cap quickly, easily and without tools.

STIHL ElastoStart

CLICK HERE TO ENLARGE

Due to compression pressure, jerky stresses occur when starting internal combustion engines. The damping element in the ElastoStart special starter grip alternately absorbs and releases force according to the compression pattern. The result is smooth, even starting.
