STIHL MS194C-E- FLEMING'S STIHL Centre Naas Co. Kildare

STIHL
MS194 C-E
CARVING
SAW

Stihl
MS 194 C-E
CARVING
SAW

Compact and efficient chainsaw featuring Easy2Start™ technology and an excellent power-to-weight ratio.

MS194 C-E

STIHL took a top-rated saw and made it better. The MS 194 C-E has greater displacement, more power, and improved cutting performance versus the previous model. All of this was achieved without adding weight—successfully reducing user fatigue. A fuel-efficient engine results in longer run times and less downtime, while the STIHL Easy2Start™ system provides simple starts. Top that with toolless fuel and oil filter for fast and easy refueling. The MS 194 C-E is ideal for felling small trees, tree trimming, and firewood cutting. Experience STIHL innovation at work with the MS 194 C-E.


Specifications :

Displacement 31,76 cm³
Power output 1,4/1,9 kW/PS
Weight 3,6 kg(1)
Power-to-weight ratio 2,6 kg/kW
Saw chain pitch 1/4"
Sound pressure level 101 dB(A)(2)
Sound power level 3) 114 dB(A)(3)
Vibration level left/right 3,6/3,6 m/s²(4)


1) Without fuel, without bar and chain
2) K-factor according to DIR 2006/42/EC = 2.5 (dB (A))
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4) K-factor according to DIR 2006/42/EC = 2m / s ²

Owners / Instruction Manuals

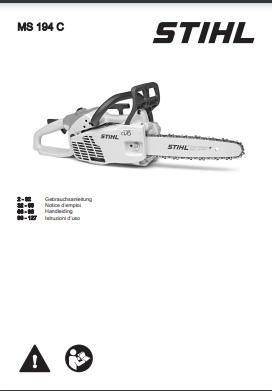

MS 194 C-E Owners Manuel Click Here

Product Videos

STIHL MS194 C-E
Standard equipment:

COMPACT AND EFFICIENT CHAINSAW FEATURING EASY2START™ TECHNOLOGY AND AN EXCELLENT POWER-TO-WEIGHT RATIO.

STIHL ANTI-VIBRATION SYSTEM

CLICK HERE TO ENLARGE

FOR MORE PLEASANT WORK. Vibrations can occur when you put your power tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and therefore to your body. The result is that your power tool is more comfortable to hold and your work is much less tiring.

STIHL 2-MIX ENGINE

CLICK HERE TO ENLARGE

HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.


STIHL ERGOSTART

CLICK HERE TO ENLARGE

EFFORTLESS STARTING. STIHL ErgoStart saves you energy when starting your power tools. A smooth and even pull on the starter cord is all that’s needed. The required speed on the starter cord is significantly reduced, and the engine starts quickly and reliably even with a slow pull. An additional spring between the crankshaft and the starter cord roll makes this easier.


IntelliCarb™ Compensating Carburetor

CLICK HERE TO ENLARGE

The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.

Tool free fuel caps

CLICK HERE TO ENLARGE

Special caps to open and close the tank cap quickly, easily and without tools.

SIDE-MOUNTED CHAIN TENSIONING

CLICK HERE TO ENLARGE

FOR SIMPLE AND SECURE RE-TENSIONING. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.

MANUAL FUEL PUMP(PURGER)

CLICK HERE TO ENLARGE

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operation.
